SMALL but MIGHTY, METAL Laser Engraver

Fiber laser marking machine advantage:
 1.High precision and speed.
2.Wide range power source and various
3.metal and non-metal application materials.
4.World famous brand components.
5.Different configuration can be customized.

Product Description:

Metal fiber laser marking machine Detail specs

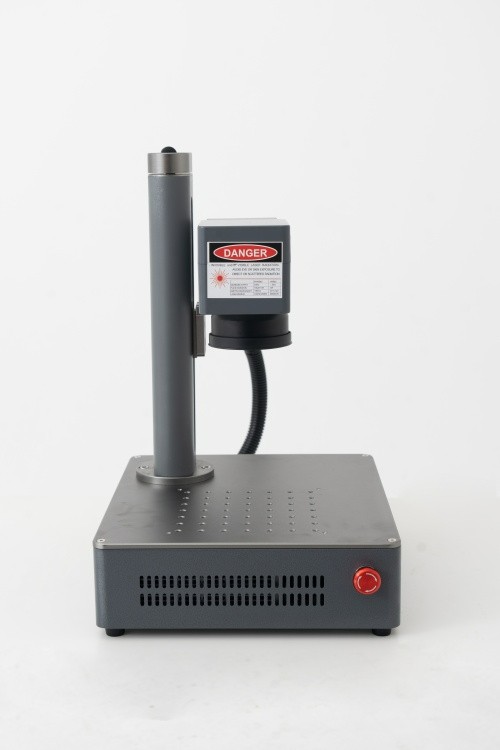

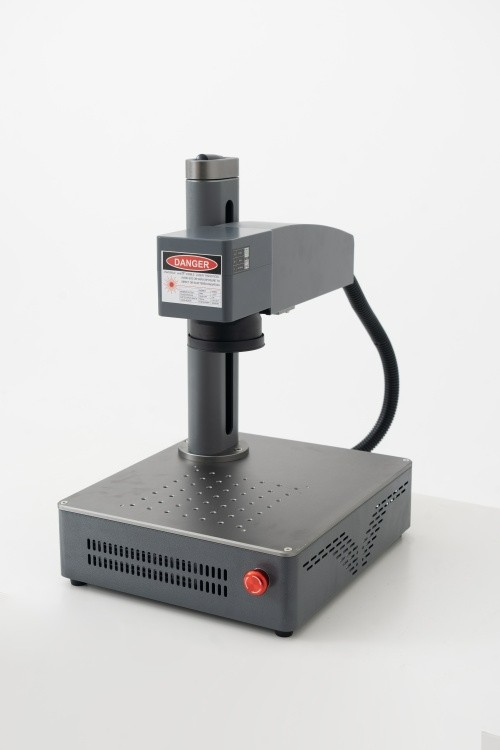

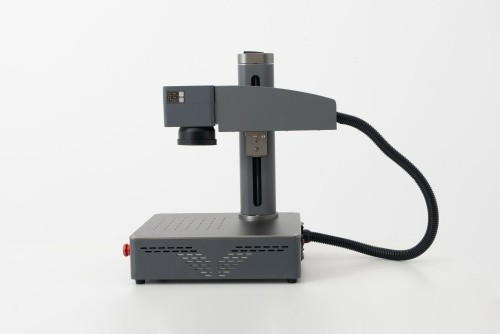

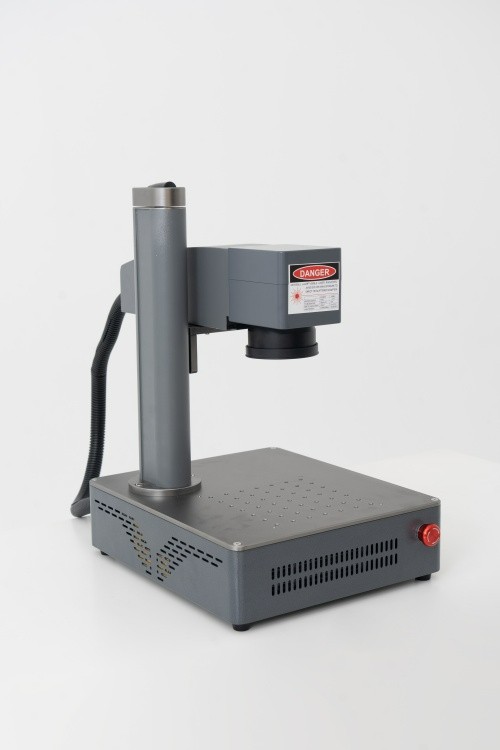

Portable Fiber Laser Marking Machine, no need of constant temperature and humidity

and water cooling facilities. Minimal supplies, simplest maintenance.

Large scope of lifting range: suitable for all kinds of dimensions of products marking.

II.Application

Materials:

Ø Metals: Gold, silver, copper, alloy, aluminum, steel, stainless steel, name card

Ø Non-metal: Plastic: engineering plastic and hard plastic, etc. Used in electronic components

integrated circuits, mobile communications, precision instruments, glasses watch and clocks,

computer keyboard, accessories, auto parts, plastic buttons, plumbing fittings, sanitary ware,

PVC pipe, medical equipment, packaging bottles, etc.

Model	BFT- 20S 30S 50S/100W
Laser power	20W 30W 50W /100W
Laser source	Max/Raycus /JPT
Supports graphical format	PLT, BMP, JPG, PNG, TIP, PCX, TGA, ICO, DXF
Beam quality	m2 <2
Power stability	(8h) <± 1% rms
Pulse repetition frequency	20KHZ ---- 100KHZ
Power consumed	<800W
Minimum line width	50μm
Minimum character	0.3mm
Laser Wavelength	1064nm
Galvanometer Size	110 * 110mm 150150mm200200mm 300*300mm
Whole machine power	500w
Software	Win32bit+EZCAD marker system
Cooling way	Air cooling
Operating voltage	110/220V ± 10% /,50/60HZ
Ambient operating temperature	15 ° C - 35 ° C
Weight	55KG
Packing	plywood wooden packaging
