sheet metal laser cutting machine

Laser type:                      Fiber laser
Kayword:                        Metal laser cutting machine,
                                       Fiber laser cutting machine
                                        Laser cutting machine for metal
Cutting Speed	               100m/min
Cooling Mode	               WATER COOLING
Control System Brand    Cypcut
Applicable Material  	Metal Stainless Steel Carbon Steel
                                        Etc
Cutting Area

Product Description:

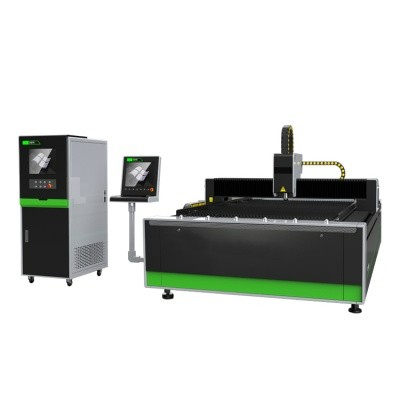

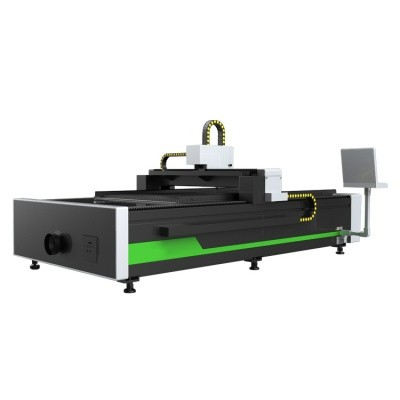

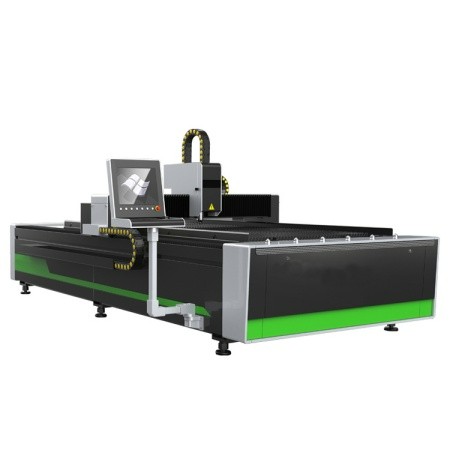

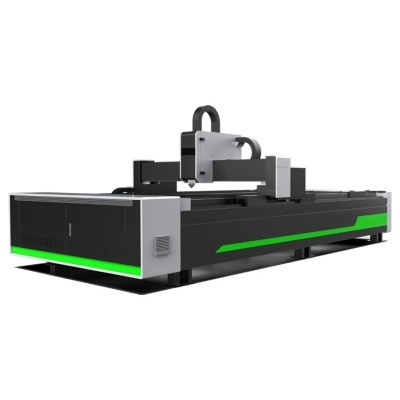

2024 new type Fiber Laser Cutting Machine for Sheet Metal Fabrication on Sale

Fiber laser cutting machine can do both flat cutting and bevel cutting processing,

and the edge is neat and smooth, suitable for metal plate and other high-precision cutting processing.

1530 metal fiber laser cutting machine is more popular using.


Detail specs of Metal fiber laser cutting machine 3015

Products Name

Fiber laser cutting machine

Model

BFT-1530

Working area

1500*3000mm (5*10ft)

Laser power

1000w/1500w/2000w/3000w/6000w

Loading capacity

800kgs

Laser Source

Raycus/Max source

Graphic Format

dwg / dxf / stp

Control system

FSCUT(Cypcut)

Laser Head

Raytools

Water Chiller

Wuhan HANLI/S&A

Servo motor

Japan Fuji motor and driver

Precision reducer

shimpo reducer

Gear rack

YYK RACK

Linear Guide

TAIWAN HIWIN LINEAR

Proportional valve

Japan SMC

Machining breadth

1500*3000MM(OPTIONAL CUSTOMIZED SIZE)

X-axis travel

1500MM

Y-axis travel

3000MM

Z-axis travel

150MM (CUSTOMIZED)

Positioning Accuracy of X and Y axis

0.05mm/m (0.002”)

Repeated positioning accuracy of X and Y axis

0.03mm  (0.001”)



Maximum Acceleration of X and Y axis

1.0G

Assist Gasses

Air / Oxygen / Nitrogen

Working voltage

380V

Protection Level of Total Power Supply

IP X 4

Machine total weight

2000kgs

Operating temperature

0-40

Operating humidity

<90%

Gantry

Strengthen Steel

Machine size (W*L*H)

2240*4600*1800MM

For the metal fiber laser cutting machine A combination of proprietary design honey-conjunction machine equipment

 and high-strength welding beds, especially stainless steel, alloy steel, titanium and others.

Suitable for metal material high precision cutting metal products, hardware, precision machinery,

auto parts, glasses, jewelry, name panels, electronics,  is widely used in advertising and other industries.



Compared to other types of cutting, Fiber laser cutting machine offers several advantages.

These include:

·Greater cutting precision and accuracy

·Higher quality edges

·Narrower knife widths

·Smaller HAZ and less material distortion

·Less material contamination and waste

·Lower maintenance and repair costs

·Greater operator safety

Suitable for metal material high precision cutting metal products,fiber laser cutting machine

is widely used in advertising and other industries for metal cutting ,
