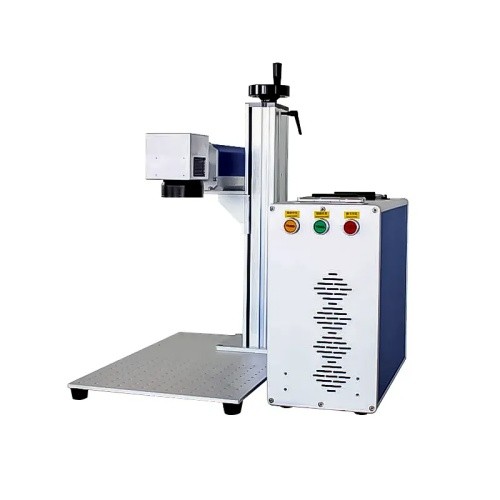

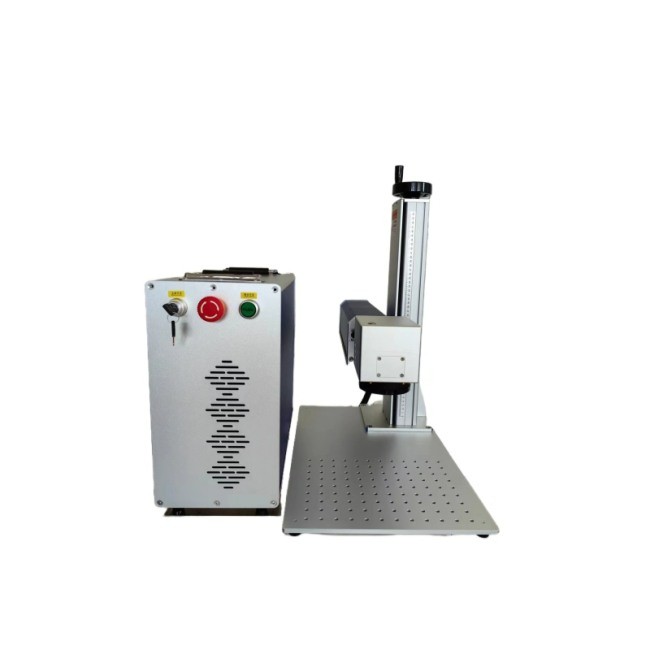

Fiber laser marking machine advantage: 1.High precision and speed. 2.Wide range power source and various 3.metal and non-metal application materials. 4.World famous brand components. 5.Different configuration can be customized.
Key Advantages
Original Raycus fiber laser source for stable performance and long service life
Fine marking precision down to [0.01mm], clear and permanent engraving
Air-cooled system, no chiller required, low operating cost
Portable structure, easy to move between workstations
No consumables — no inks, solvents, or marking papers needed
Supports Windows-based software with intuitive interface
CE certified, compliant with European and North American safety standards
Technical Specifications
| Item | Specification |
|---|---|
| Laser Power | 30W |
| Laser Source | Raycus (MAX / JPT optional) |
| Marking Area | 110×110mm (150×150mm / 200×200mm optional) |
| Marking Depth | 0.01–0.3mm (material dependent) |
| Line Width | 0.01–0.2mm |
| Marking Speed | ≤ [7000mm/s] |
| Repeat Accuracy | ±0.001mm |
| Cooling Mode | Air cooling |
| Power Supply | 110V–220V, 50/60Hz |
| Operating System | Windows 7 / 10 / 11 |
| Machine Weight | [~45kg] |
| Warranty | 1 year whole machine, 2 years laser source |
The metal fiber laser engraver machine has 20w 30w 50w 100w source ect,working
size 110*100mm 150*150mm ,200*200mm ,300*300mm ect
The fiber laser engraver working with JCZ Controller card which easy to operation and using.
Suitable Materials
Metals: Stainless steel, carbon steel, aluminum, brass, copper, titanium, alloy, gold, silver
Non-metals: Hard plastic, ABS, epoxy resin, coated materials
Not recommended for wood, paper, leather, glass, or transparent acrylic (use CO₂ laser for those materials).
Application Industries
Hardware tools and accessories
Automotive and motorcycle spare parts
Jewelry and watchmaking
Electronic components and PCB
Medical devices and instruments
Bearings, gears, and precision machinery parts
Gift crafts and promotional items
| Upgrade | Description |
|---|---|
| Larger field lens | 150×150mm or 200×200mm 300*300mm marking area |

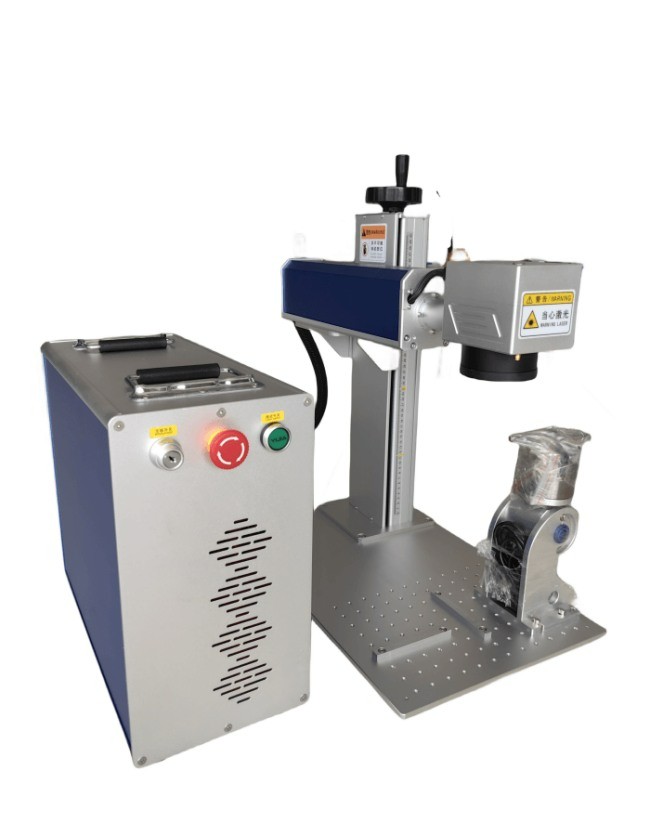

| Rotary axis | For marking round objects, cylinders, rings, cups |
| Built-in computer cabinet | All-in-one workstation with monitor and PC |
| Safety enclosure | Fully enclosed protective cover for operator safety |
| Conveyor belt | For automated batch marking production lines |
| Custom laser source | MAX,, or JPT source available on request |
OEM & Customization
We provide full OEM and customization services for distributors, resellers, and industrial clients:
Custom branding: Your logo printed on the machine body
Custom marking area: Non-standard lens sizes for special production needs
Custom software settings: Pre-configured parameters for your specific materials
Custom packaging: Reinforced wooden cases with your company branding for resale
Private label: Full white-label solution for distributors
Send us your requirements and our engineering team will provide a tailored quotation within 24 hours.
Warranty & After-Sales Service
| Service Item | Details |
|---|---|
| Whole machine warranty | 1 year |
| Laser source warranty | 2 years (Raycus) |
| Technical support | Lifetime online support |
| Documentation | English operation manual + setup video |
| Remote assistance | TeamViewer / AnyDesk remote troubleshooting |
| Spare parts | Available at factory cost for lifetime |
| Training | Free online training for operators |
Delivery & Shipping
Standard models: 7–15 working days after deposit received
Customized machines: 15–25 working days
Shipping methods: Sea freight (LCL/FCL), air freight, express (DHL/FedEx), door-to-door delivery
Packaging: Plywood case with foam protection, suitable for long-distance ocean shipping
We ship to: North America, Europe, Southeast Asia, Middle East, Australia, and worldwide
FAQ:
A: 20W is suitable for light surface marking on thin metals. 30W is the most popular choice for general metal
marking with balanced speed and depth. 50W is recommended for deep engraving, thick metals, and high-volume production.
A: Yes, it can mark on certain hard plastics such as ABS, nylon, and epoxy-coated materials. It is not suitable for
soft plastics, PVC, or silicone. We recommend sending samples for a free marking test.
A: Yes. Send us your material samples and we will mark them for free and return the samples with a test report.
You only cover the return shipping cost.
A: T/T 30% deposit, 70% balance before shipment. We also accept L/C at sight for large orders. Other terms
can be discussed case by case.
A: No professional installation is required. The machine arrives pre-assembled and pre-calibrated. We provide
an English setup video and offer free online training. Most customers are running production within 2 hours of unboxing.
