Fiber laser marking machine advantage:
 1.High precision and speed.
2.Wide range power source and various
3.metal and non-metal application materials.
4.World famous brand components.
5.Different configuration can be customized.

Product Description:

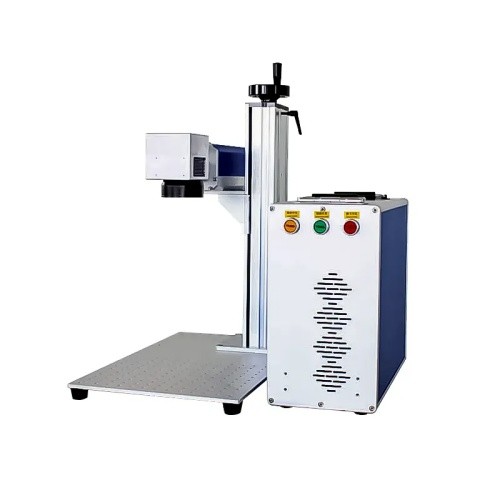

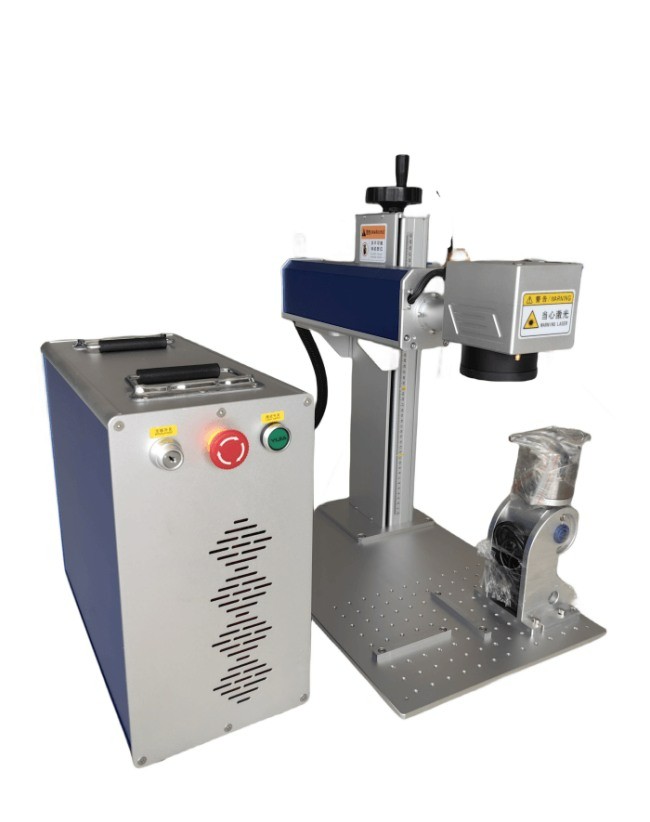

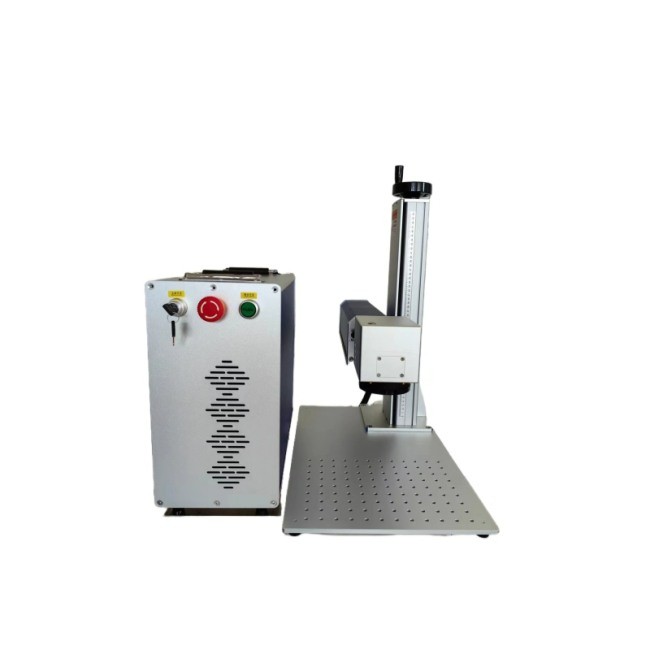

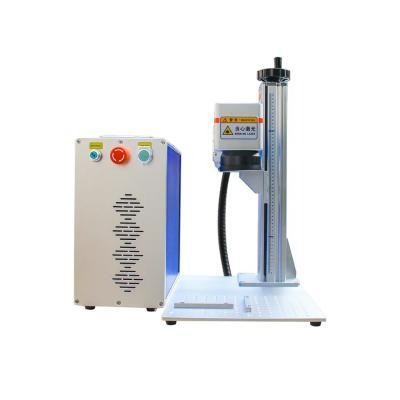

Desktop Metal Fiber laser engraver machine

The fiber laser marking machine is a high-precision, high-stability industrial engraving equipment

designed for permanent marking on metal and partial high-density non-metal materials.

Adopting advanced fiber laser generator technology, it features concentrated laser beam,

minimal thermal impact, clear marking texture and long service life, which is widely recognized

as the most cost-effective laser marking solution for industrial batch processing and customized engraving.

Applicable MaterialsThis desktop fiber laser marker supports diverse industrial materials,

including stainless steel, carbon steel, aluminum, copper, brass, alloy, gold and silver jewelry,

titanium metal, and hard plastic. It performs excellent black marking, white marking,

deep engraving and pattern carving on various metal surfaces, ensuring uniform color

and clear edge without blurring or falling off.

Application ScenariosWidely used in hardware tools, auto parts, electronic components,

precision instruments, medical equipment, jewelry accessories, kitchen utensils, sanitary ware,

mechanical parts and gift customization. It is suitable for marking serial numbers, QR codes,

barcodes, logos, production dates, model specifications and personalized patterns, meeting

mass production marking and small-batch customized processing demands.

Core AdvantagesFirst, the machine delivers ultra-fine marking accuracy with tiny laser spot,

capable of micro-precision engraving on small workpieces. Second, it features low energy consumption

and stable continuous working performance, supporting 24-hour industrial operation without frequent failure.

Third, the fully enclosed optical path ensures high safety and low noise. Fourth, the compact desktop structure

saves workshop space with simple installation and easy operation, requiring no professional debugging. In addition,

the marked patterns are wear-resistant, corrosion-resistant and not easy to fade, greatly improving product identification

grade and anti-counterfeiting performance.

Selection GuideUsers can select power according to processing demands: 20W and 30W are suitable for shallow marking,

text and logo engraving on common metals; 50W is the most versatile model for most industrial marking and slight deep

engraving; 100W is recommended for deep carving, thick coating removal and high-hardness material processing. For

large-size workpieces, choose large-format models; for site-moving operation, portable fiber laser marking machines are available.

Model	BFT- 20S 30S 50S/100W
Laser power	20W 30W 50W /100W
Laser source	Max/Raycus /JPT
Supports graphical format	PLT, BMP, JPG, PNG, TIP, PCX, TGA, ICO, DXF
Beam quality	m2 <2
Power stability	(8h) <± 1% rms
Pulse repetition frequency	20KHZ ---- 100KHZ
Power consumed	<800W
Minimum line width	50μm
Minimum character	0.3mm
Laser Wavelength	1064nm
Galvanometer Size	110 * 110mm 150150mm200200mm 300*300mm
Whole machine power	500w
Software	Win32bit+EZCAD marker system
Cooling way	Air cooling
Operating voltage	110/220V ± 10% /,50/60HZ
Ambient operating temperature	15 ° C - 35 ° C
Weight	55KG
Packing	plywood wooden packaging
