Welcome: LiaoCheng Bofetlaser technology co.,ltd

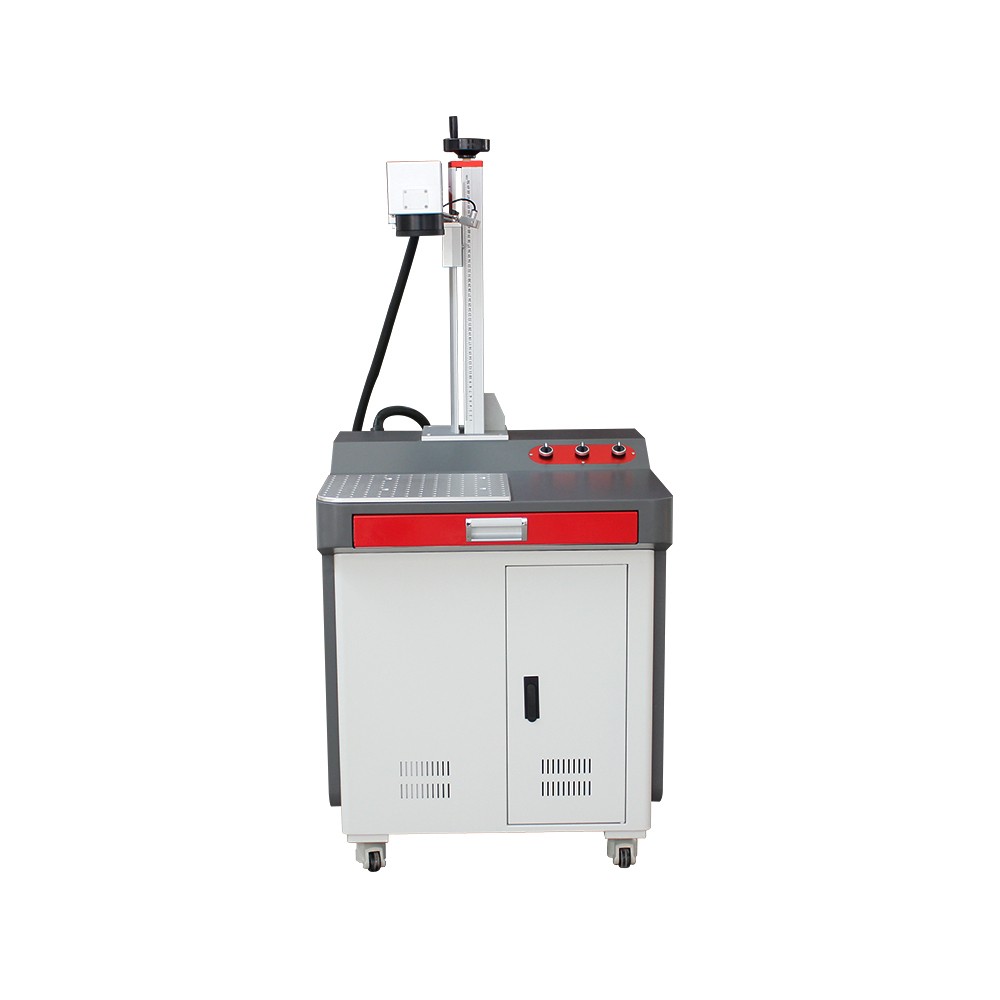

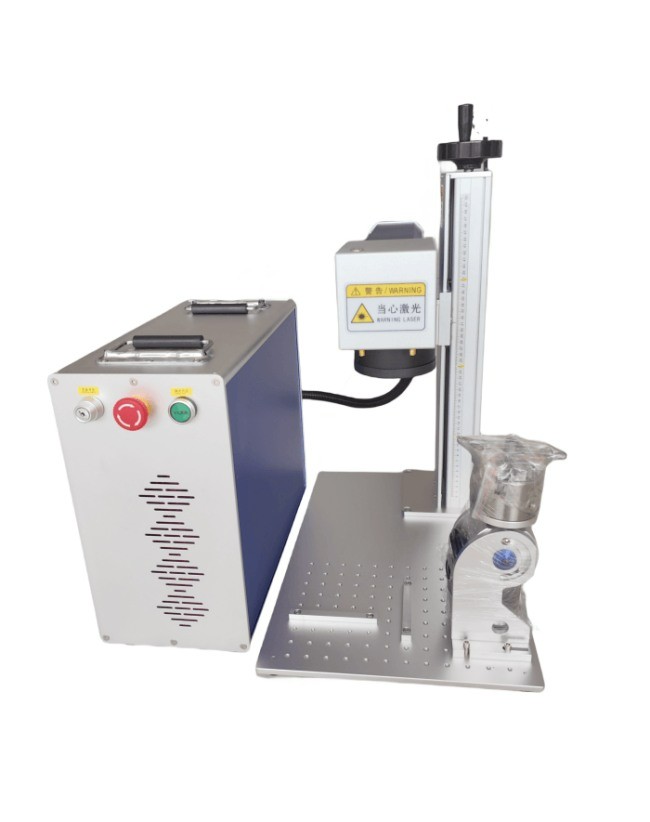

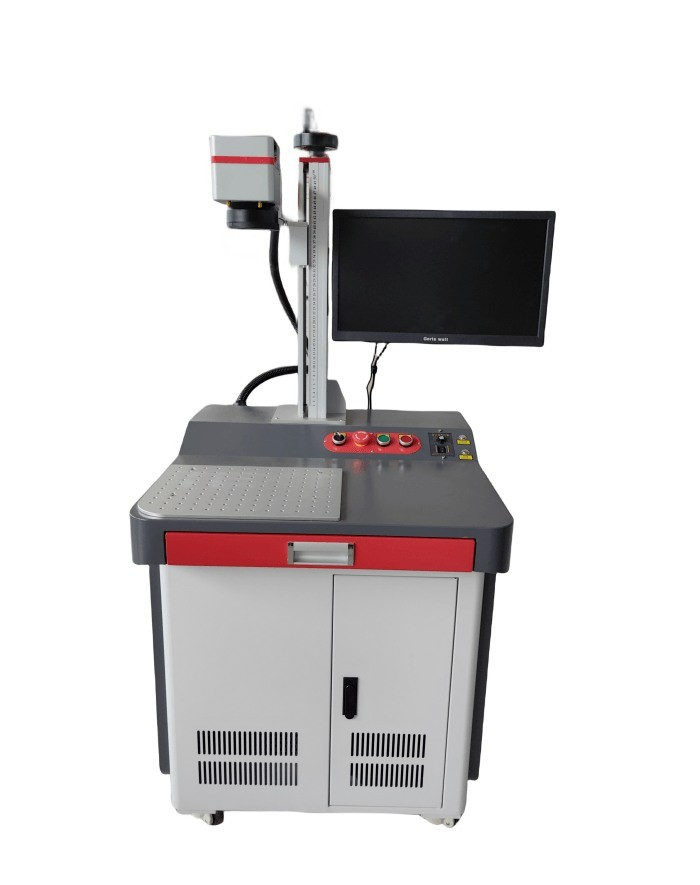

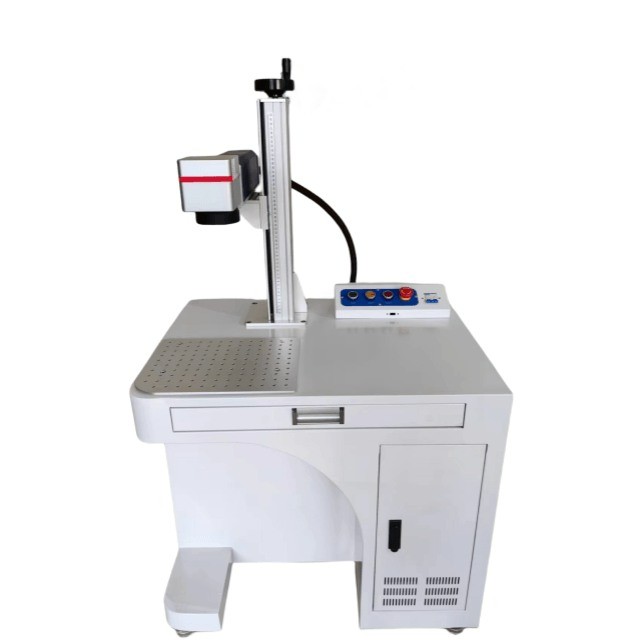

Raycus fiber laser engraver machine

Fiber laser marking machine advantage:
 1.High precision and speed.
2.Wide range power source and various
3.metal and non-metal application materials.
4Different configuration can be customized.

Product Description:

Metal fiber laser marking machine

Fiber Laser marking machines are used to mark various materials such as metals, plastics, ceramics, and more.

They are commonly used in industries such as automotive, aerospace, medical, and electronics.

JPT MOPA M7 fiber laser marking machine normally used for color engraving on metal surface

II.Application

Materials:

Ø Metals: Gold, silver, copper, alloy, aluminum, steel, stainless steel, name card

Ø Non-metal: Plastic: engineering plastic and hard plastic, etc. Used in electronic components integrated circuits,

mobile communications, precision instruments, glasses watch and clocks, computer keyboard, accessories,

 auto parts, plastic buttons, plumbing fittings, sanitary ware, PVC pipe, medical equipment, packaging bottles, etc.





Model

BFT- 20S 30S  50S/100W

Laser power

20W 30W 50W /100W

Laser source

Max/Raycus /JPT

Supports graphical format

PLT, BMP, JPG, PNG, TIP, PCX, TGA, ICO, DXF

Beam quality

m2 <2

Power stability

(8h) <± 1% rms

Pulse repetition frequency

20KHZ ---- 100KHZ

Power consumed

<800W

Minimum line width

50μm

Minimum character

0.3mm

Laser Wavelength

1064nm

Galvanometer Size

110 * 110mm 150*150mm200*200mm 300*300mm

Whole machine power

500w

Software

Win32bit+EZCAD marker system

Cooling way

Air cooling

Operating voltage

110/220V ± 10% /,50/60HZ

Ambient operating temperature

15 ° C - 35 ° C

Weight

55KG

Packing

plywood wooden packaging




501.jpg JPT MOPA M7 fiber laser marking machine  with Sino gavol head RC7110/RC1001 HEAD,And famous brand

lens












head and lens_副本.jpg

card and software_副本.jpg




 Fiber laser engraver machine with JCZ Controller card ,with EZCAD Software  easy to operation












accessoreis with machine_副本_副本.jpg




  Theres will be shipped with standard accessoreis with foot pedal

Protective goggles for fiber laser marking machine, power lines,simple

laser machine tools,Usb lines  and focus rulers













DESKTOP FIBER LASER MARKING MACHINE_7_副本.jpg






 There aslo optional parts for selection using such as

roattion axis and platforms for special using

like ring rotary , and other D80 d100 Rotary chuck,

the Holder platforms and 2d 3d Extended platform.






















FIBER MACHINE SAMPLES_副本.jpg




the Fiber laser marking machine 30w 50w 100w ect  laser source brand

RAYCUS  MAX  OR JPT , working size  70*70mm

110*110mm 150*150mm  200*200mm 300*300mm

Application Materials:

Fiber laser marking machine can work with most metal marking applications,

 such as Stainless Steel, Brass, Aluminium, Steel, Iron etc, and can also mark

on many non-metal materials, such as ABS, Nylon, PES, PVC, Makrolon,etc.

You can check there are samples engraving on fox ,knifes ,spoon ,rings,dog tag,

ect many metails
