co2 laser engraving &cutting machine

co2 laser cutting machine feature:
laser type:      co2 glass tube
cutting speed: 0-60000mm/min
cutting area:    1300*900mm/1600*1000mm /1800*1000mm
controller:         Ruida

Product Description:

CO2 LASER CUTTING MACHINE A SERIES TYPE

CO2 Laser cutting machine with various working size optional

700*500mm , 900*600mm .1300*900mm ,1600*1000mm or customized

Ⅲsuitable materials for cutting & engraving

The laser systems offered here are very well suited for Engraving

and cutting materials such as the following:

Natural materials:Rock, brick, stone, marble, granite, glass,

Organic Materials:Wood, Leather, Plants, Fruit, Vegetables, Sea shells ...etc.

 (be carefull not to burn your skin or eyes)

Man Made Polymers:Acrylic, plexiglass, vinyl, styrofoam, styrene, ..etc.

Cloths:Jeans, cotton, silk, nylon, Dacron, ..etc



Model

BFT1080

Processing area

1000*800mm

Laser power

60W(Option:80W,100W,130W)

Laser type:

Co2 Sealed glass laser tube

Resetting positioning accuracy:

±0.01mm

Compatible Software:

Laser cut , CorelDraw, AutoCAD, Photoshop

Whole machine size:

1300mm*1450mm*1150mm

Engraving speed

1-60000mm/min

Cutting speed

1-20000mm/min

Cutting thickness

0-20 mm acrylic (others determined by materials)

Resolution ratio

≤0.0125mm

Position system:

Red dot

Interface:

USB

Minimum shaping character

letter 0.8mm, Chinese 2mm

Support graphic format

DST, PLT, BMP, DXF

Gross power

1000W

Driving mode:

DC0.8A 24V stepper motor

Cooling mode:

Water cooling

Working voltage:

AC 110 - 220V±10%, 50 - 60Hz or depend on customer

Option:

Up and down table, rotary attachment

Packing:

Plywood box

Guarantee time:

1 year, laser tube 10 months

Net weight:

300KGS

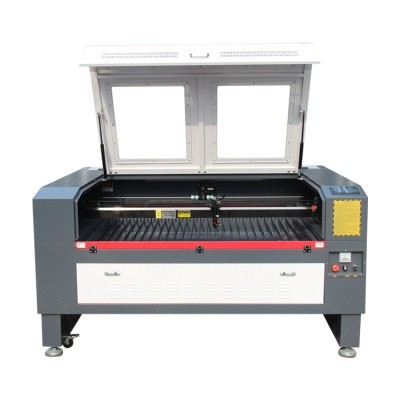

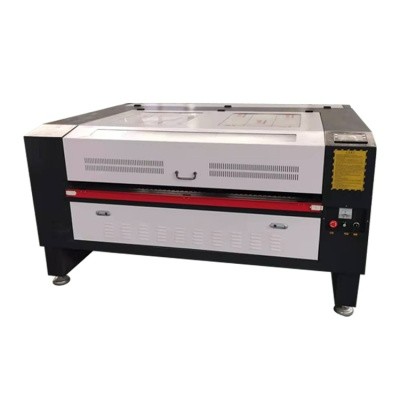

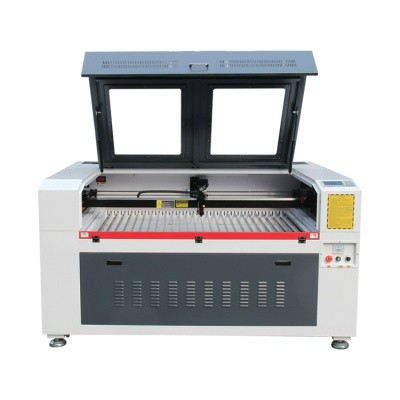

Laser engraving  and cutting machine with CO2 sealed laser tube.

Able to engrave and cut most non-metal materials and thin metal material like acrylic,

wood, leather, MDF, plywood, bamboo, rubber, asbestos rubber, paper, PVC, foam, EVA, plastic, ect

 co2 laser cutting machine with indutrial laser head  and Ruida controller

1390.jpg                 co2 laser engraving cutting machine size 1300*900mm 1600*1000mm 900*600mm ect12_副本.jpg


01HEAD BORAD MOTOR_副本.jpg

wood acrylic laser cutting machine with sealed co2  galss tube , EFR  RECI ,YONGLI

BRAND TUBE












Co2 laser cutting machine with RDC6445 Controller System,13 laguages can be select , easy to operation

with Leadshin famous stepmotor ,working performance fast










02tube , guide_副本.jpg

co2 laser engraving and cutting machine with honeycomb table with SHAC linear

rail  for working speedy.when cutting wood acrylic plywood ect.It can aslo with lifting

table to engraving on thickness non metal materials such as wood, paper fabric ect



The co2 laser engraving and cutting machine is widly using



  · Applicable  Materials:



· wood, bamboo, jade, marble, organic glass, crystal, plastic, garments, paper, leather, rubber, ceramic,

·

· glass and other nonmetal materials.

·

· Applicable industries:

·

· advertisement, arts and crafts, leather, toys, garments, model, building upholstery, computerized

·

· embroidery and clipping, packaging and paper industry.

application material _副本.jpg
