portable Metal fiber Laser engraving machine

Fiber laser marking machine advantage:
 1.High precision and speed.
2.Wide range power source and various
3.metal and non-metal application materials.
4.World famous brand components.
5.Different configuration can be customized.

Product Description:

Metal  fiber laser marking machine Detail specs

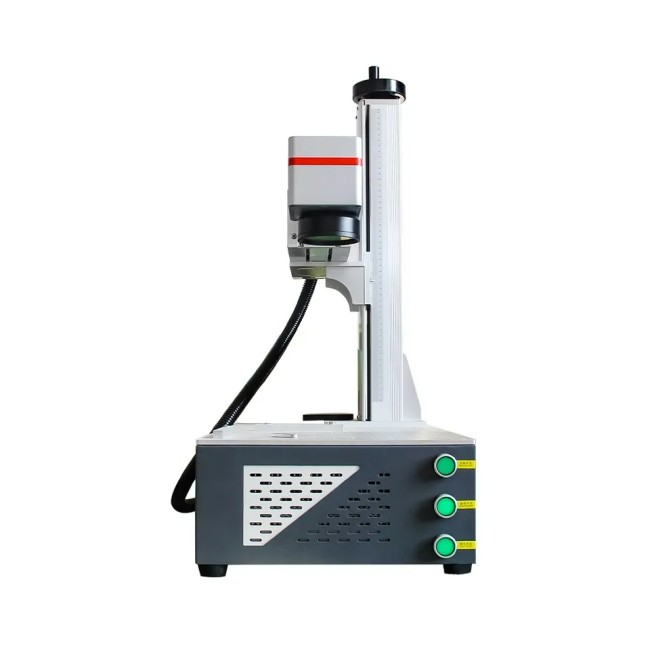

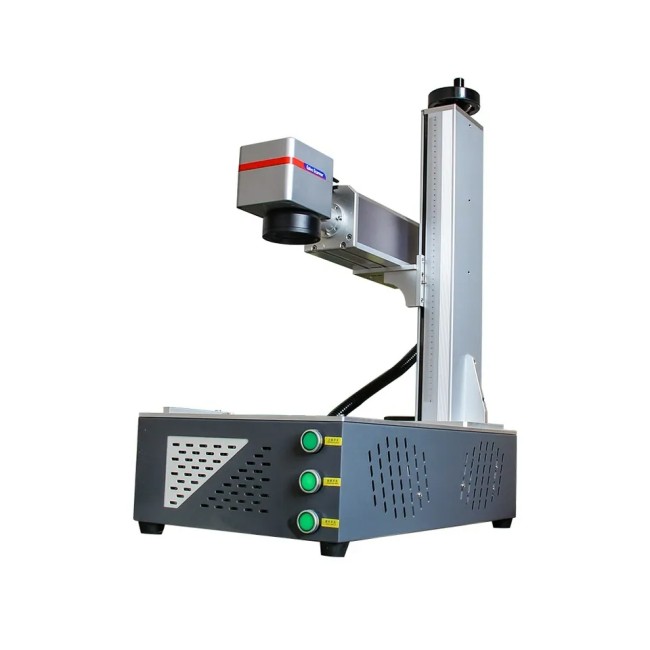

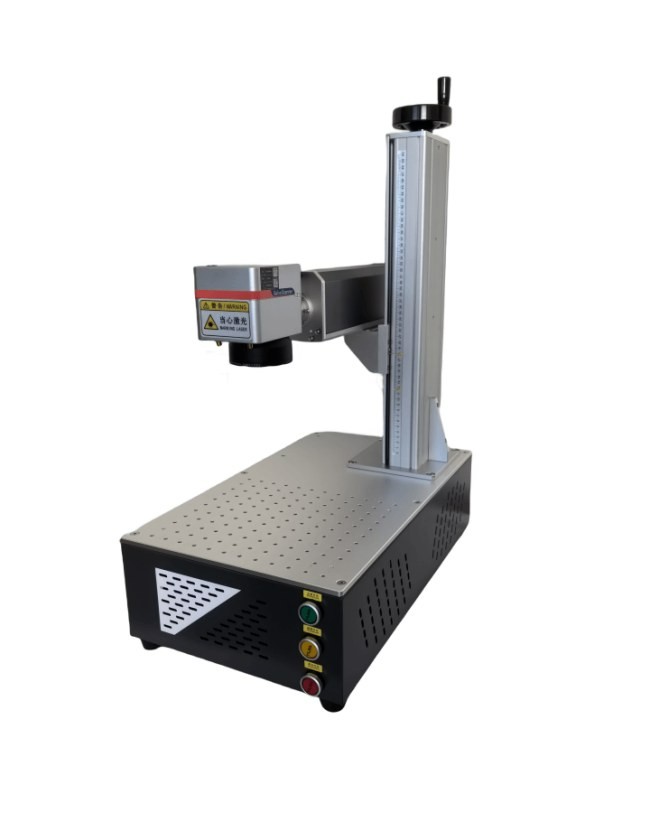

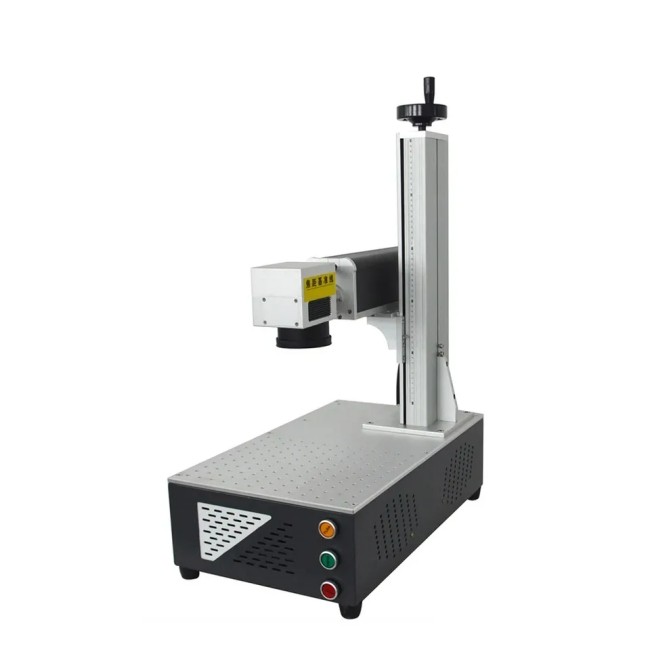

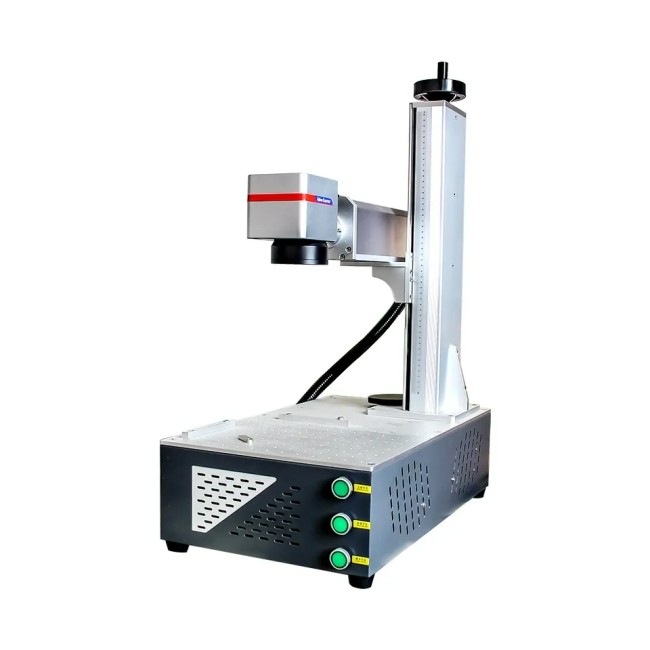

 Portable Fiber Laser Marking Machine, no need of constant temperature and humidity

 and water cooling facilities. Minimal supplies, simplest maintenance.

Large scope of lifting range: suitable for all kinds of dimensions of products marking.

 II.Application

Materials:

Ø Metals: Gold, silver, copper, alloy, aluminum, steel, stainless steel, name card

Ø Non-metal: Plastic: engineering plastic and hard plastic, etc. Used in electronic components

integrated circuits, mobile communications, precision instruments, glasses watch and clocks,

computer keyboard, accessories, auto parts, plastic buttons, plumbing fittings, sanitary ware,

PVC pipe, medical equipment, packaging bottles, etc.

Model

BFT- 20S 30S  50S/100W

Laser power

20W 30W 50W /100W

Laser source

Max/Raycus /JPT

Supports graphical format

PLT, BMP, JPG, PNG, TIP, PCX, TGA, ICO, DXF

Beam quality

m2 <2

Power stability

(8h) <± 1% rms

Pulse repetition frequency

20KHZ ---- 100KHZ

Power consumed

<800W

Minimum line width

50μm

Minimum character

0.3mm

Laser Wavelength

1064nm

Galvanometer Size

110 * 110mm 150*150mm200*200mm 300*300mm

Whole machine power

500w

Software

Win32bit+EZCAD marker system

Cooling way

Air cooling

Operating voltage

110/220V ± 10% /,50/60HZ

Ambient operating temperature

15 ° C - 35 ° C

Weight

55KG

Packing

plywood wooden packaging

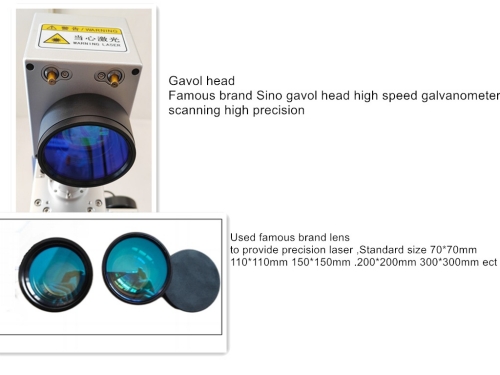

head and lens_副本.jpg

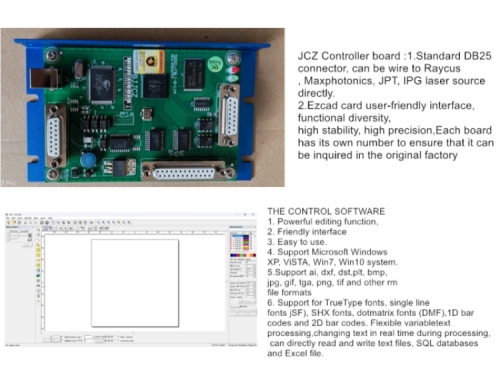

card and software_副本.jpg

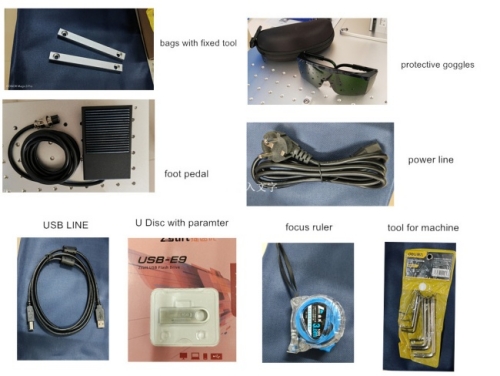

accessoreis with machine_副本_副本.jpg

DESKTOP FIBER LASER MARKING MACHINE_7_副本.jpg

FIBER MACHINE SAMPLES_副本.jpg






















FIBER MACHINE SAMPLES_副本.jpg
