metal and non metal co2 laser cutting machine

metal and non metal co2 laser cutting machine

Laser engraving  and cutting machine with CO2 sealed laser tube. Able to engrave and cut most non-metal materials  like acrylic, wood, leather, MDF, plywood, bamboo, rubber, asbestos rubber, paper, PVC, foam, EVA, plastic, etc.
This engraver can process Plexiglas products, acrylic display panel lenses, wood carving, wood percutaneous flowers, and advertising products, crystal characters, packing boxes, models, toys and furniture.

Product Description:

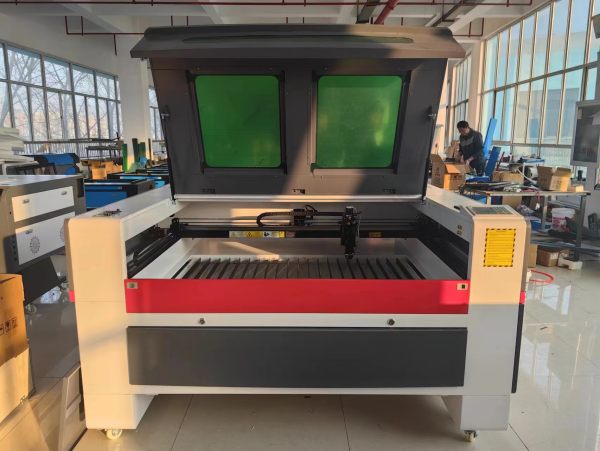

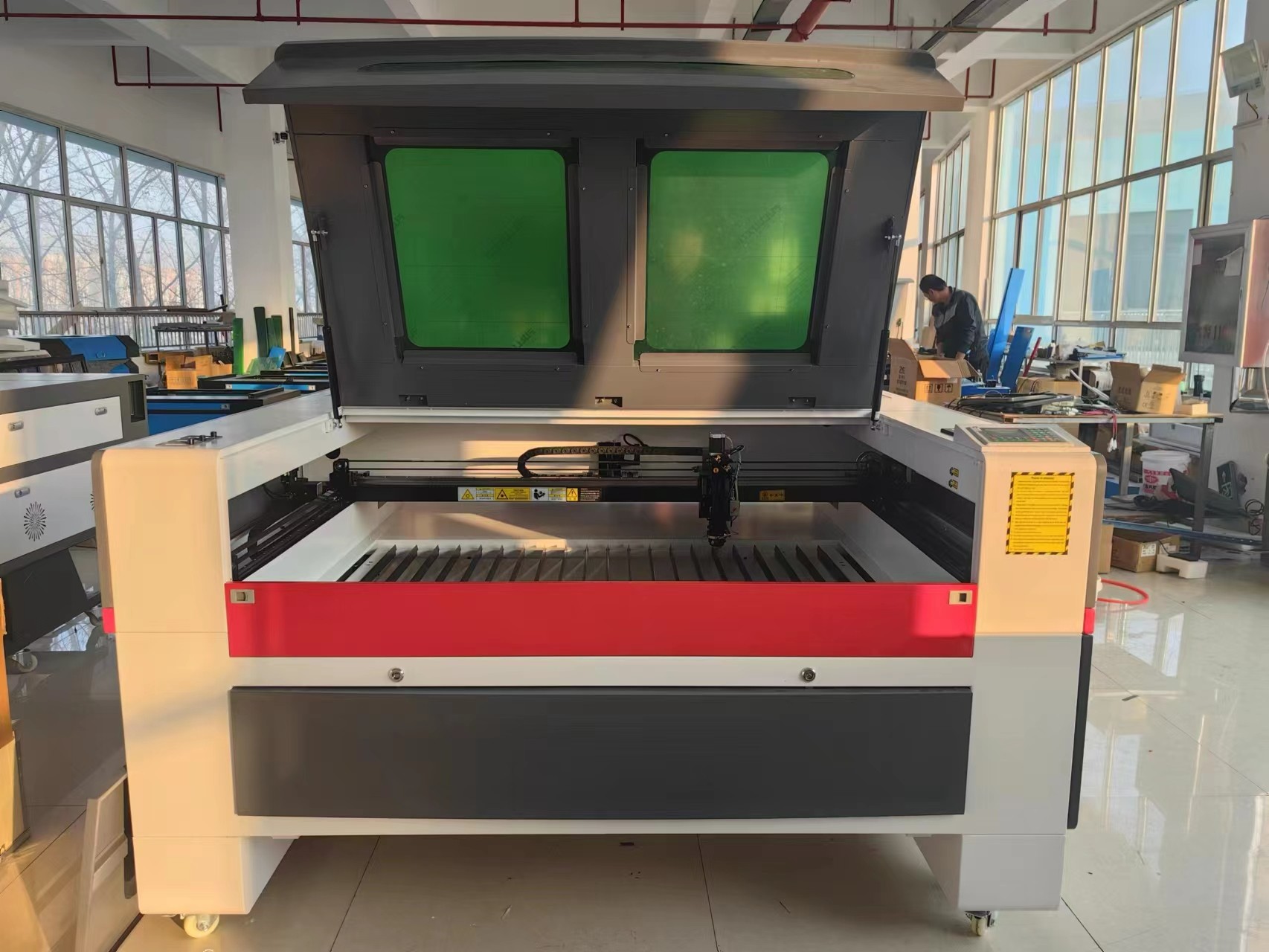

metal and non metal Mixed co2 laser cutting machine

Co2 laser engraving and cutting machine is used to engrave many kinds of non-metal materials,

such as acrylic, bamboo products, cloth, plastic, marble, glasses, woods, PVC. etc.

This engraver can process Plexiglas products, acrylic display panel lenses, wood carving,

wood percutaneous flowers, and advertising products, crystal characters, packing boxes,

models, toys and furniture.

It is specially designed for high-speed engraving and the large extended raising

Details techinical specs as follow :

Model	BFT6090S/1390S/1610S/1814S
Processing area	600900mm /1300mm900mm/16001000mm /18001400mm(customized)
Laser power	80W,100W,130W,150w ect
Laser type:	Co2 Sealed glass laser tube
Resetting positioning accuracy:	±0.01mm
Compatible Software:	Laser cut , CorelDraw, AutoCAD, Photoshop
Whole machine size:	1300mm1450mm1150mm
Engraving speed	1-60000mm/min
Cutting speed	1-10000mm/min
Cutting thickness	0-20 mm acrylic (others determined by materials)
Resolution ratio	≤0.0125mm
Position system:	Red dot
Interface:	USB
Minimum shaping character	letter 0.8mm, Chinese 2mm
Support graphic format	DST, PLT, BMP, DXF
Gross power	1000W
Driving mode:	DC0.8A 24V stepper motor
Cooling mode:	Water cooling
Working voltage:	AC 110 - 220V±10%, 50 - 60Hz or depend on customer

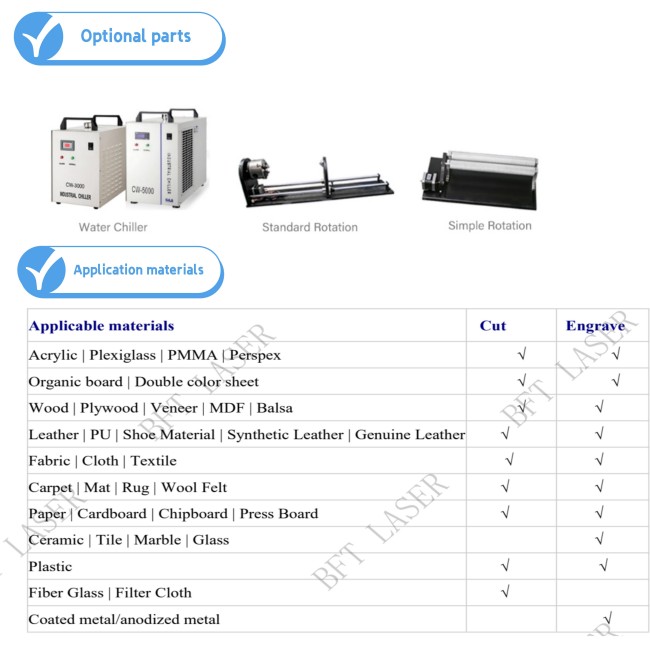

Option:	Up and down table, rotary attachment
Packing:	Plywood box
Guarantee time:	1 year, laser tube 10 months
Net weight:	300KGS/450kg/560kg/680kg
