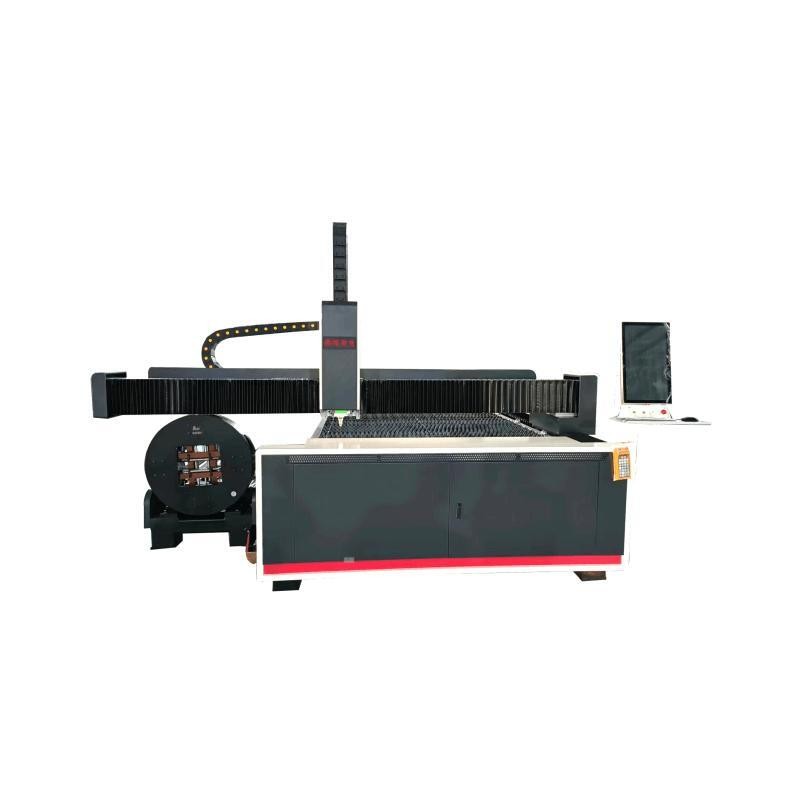

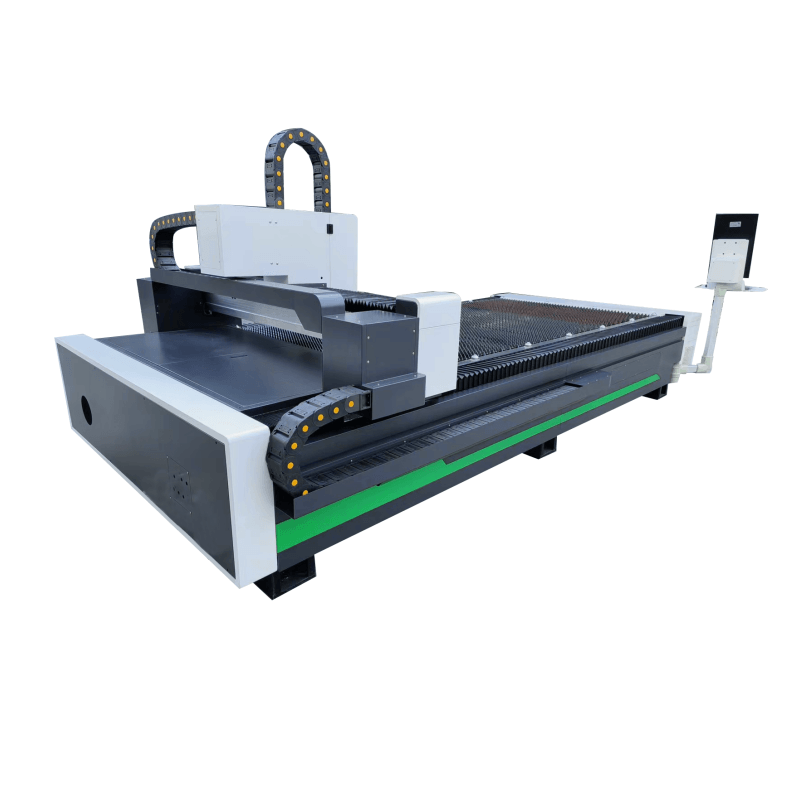

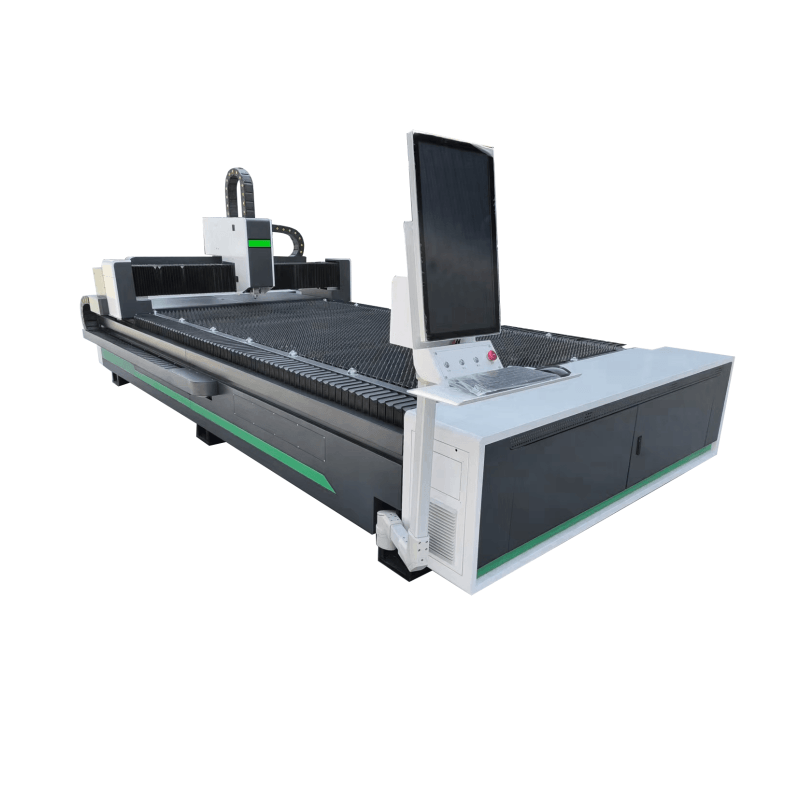

metal Fiber laser cutting machine

Laser type:                      Fiber laser
Kayword:                        Metal laser cutting machine,
                                       Fiber laser cutting machine
                                        Laser cutting machine for metal
Cutting Speed	               100m/min
Cooling Mode	               WATER COOLING
Control System Brand    Cypcut
Applicable Material  	Metal Stainless Steel Carbon Steel
                                        Etc
Cutting Area

Product Description:


Detail specs of Metal fiber laser cutting machine 3015

Products Name

Fiber laser cutting machine

Model

BFT-1530

Working area

1500*3000mm (5*10ft)

Laser power

1000w/1500w/2000w/3000w/6000w

Loading capacity

800kgs

Laser Source

Raycus/Max source

Graphic Format

dwg / dxf / stp

Control system

FSCUT(Cypcut)

Laser Head

Raytools

Water Chiller

Wuhan HANLI/S&A

Servo motor

Japan Fuji motor and driver

Precision reducer

shimpo reducer

Gear rack

YYK RACK

Linear Guide

TAIWAN HIWIN LINEAR

Proportional valve

Japan SMC

Machining breadth

1500*3000MM(OPTIONAL CUSTOMIZED SIZE)

X-axis travel

1500MM

Y-axis travel

3000MM

Z-axis travel

150MM (CUSTOMIZED)

Positioning Accuracy of X and Y axis

0.05mm/m (0.002”)

Repeated positioning accuracy of X and Y axis

0.03mm  (0.001”)



Maximum Acceleration of X and Y axis

1.0G

Assist Gasses

Air / Oxygen / Nitrogen

Working voltage

380V

Protection Level of Total Power Supply

IP X 4

Machine total weight

2000kgs

Operating temperature

0-40

Operating humidity

<90%

Gantry

Strengthen Steel

Machine size (W*L*H)

2240*4600*1800MM
