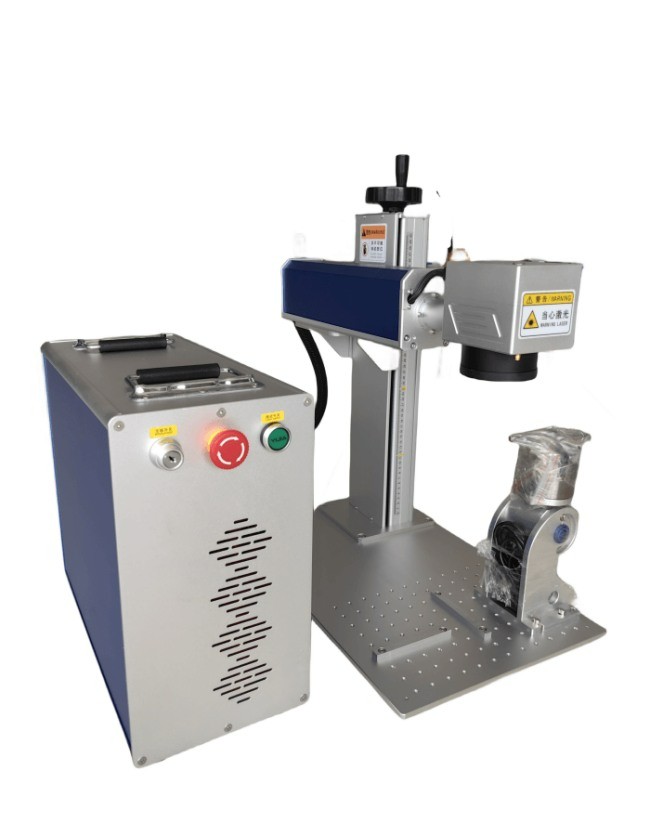

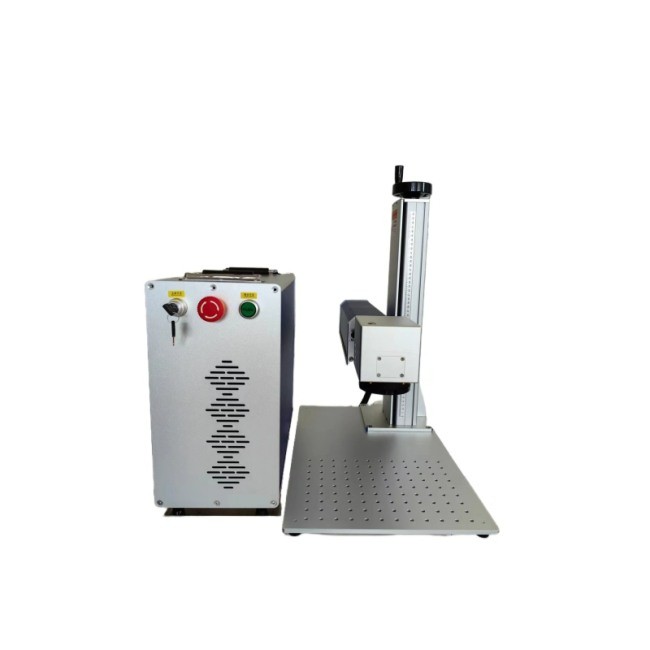

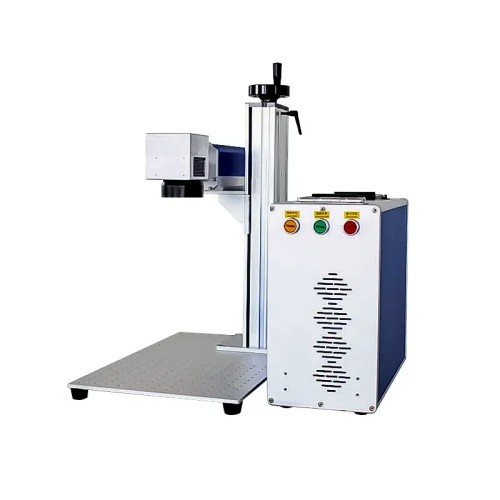

Laser marking engraving machine 20/30/50/100W - Bench-type laser fiber marker

Fiber laser marking machine advantage:
 1.High precision and speed.
2.Wide range power source and various
3.metal and non-metal application materials.
4.World famous brand components.
5.Different configuration can be customized.

Product Description:

Metal Fiber laser engraver machine

Laser marking engraving machine 20/30/50/100W - Bench-type laser fiber marker

A laser marking machine is an invaluable part of a production. Bofet laser marking

 machine can mark or engrave QR codes, serial numbers, dates, and any picture

you want onto items. This laser marker works with metals and their alloys. Plastic,

fabric, leather, glass, and other materials are also within reach of a laser.

The marker’s tripod can be removed and mounted on the ceiling, allowing

you to operate work items of any size! Bofet Fiber laser machines comes

with the EzCad system, which allows you to edit text in real time. It also

supports vector, bitmap, BMP, PLT, CDR, DXT, and AI formats, among others.

You can give our managers a call for additional details! Bofet fiber laser engravers

characteristics: Working area: 300x300, 110x110, 200x200 mm

 Laser power: 20-100 W

Machine size: 740x400x740 mm

Packing size: 780x490x800 mm

 Weight: 65kg

 Laser sourse: RAYCUS, JPT (MOPA), MAX


Model

BFT- 20S 30S  50S/100W

Laser power

20W 30W 50W /100W

Laser source

Max/Raycus /JPT

Supports graphical format

PLT, BMP, JPG, PNG, TIP, PCX, TGA, ICO, DXF

Beam quality

m2 <2

Power stability

(8h) <± 1% rms

Pulse repetition frequency

20KHZ ---- 100KHZ

Power consumed

<800W

Minimum line width

50μm

Minimum character

0.3mm

Laser Wavelength

1064nm

Galvanometer Size

110 * 110mm 150*150mm200*200mm 300*300mm

Whole machine power

500w

Software

Win32bit+EZCAD marker system

Cooling way

Air cooling

Operating voltage

110/220V ± 10% /,50/60HZ

Ambient operating temperature

15 ° C - 35 ° C

Weight

55KG

Packing

plywood wooden packaging




501.jpgThe metal fiber laser engraver machine has 20w 30w 50w 100w source ect,working size 110*100mm 150*150mm ,200*200mm ,300*300mm ect














                                                                                                                        The fiber laser marking machine with high speed galvanometer scanning head,famous lens

                                                                                                                      can be working high speed during engraving on metal and non-metal material surface

head and lens_副本.jpg

















card and software_副本.jpg



          The fiber laser engraver  working with JCZ Controller card which easy to operation and using.













accessoreis with machine_副本_副本.jpg
















DESKTOP FIBER LASER MARKING MACHINE_7_副本.jpg





























FIBER MACHINE SAMPLES_副本.jpg



Bofetlaser provides not only prime machines but also service and delivery

Our engineers and managers are ready to answer all of your questions

and provide video assistance if required. Also, owners of bofetlaser equipment

 get lifetime online support. Bofet laser located  in China We provide not only

 laser engravers, but also metal cutters, welders, markers and cleaning machines.

Bofet laser is  a Chinese Manufacture which has been creating laser equipment

 for almost 10 years and keeps evolving with the help of its clients. Thanks

 to feedback bofetlaser  made over 30 modernizations, which made machines

 more reliable, precise and powerful so you could upgrade your business up to the new level.

You can give our managers a call for additional details! Bofet fiber laser engravers
