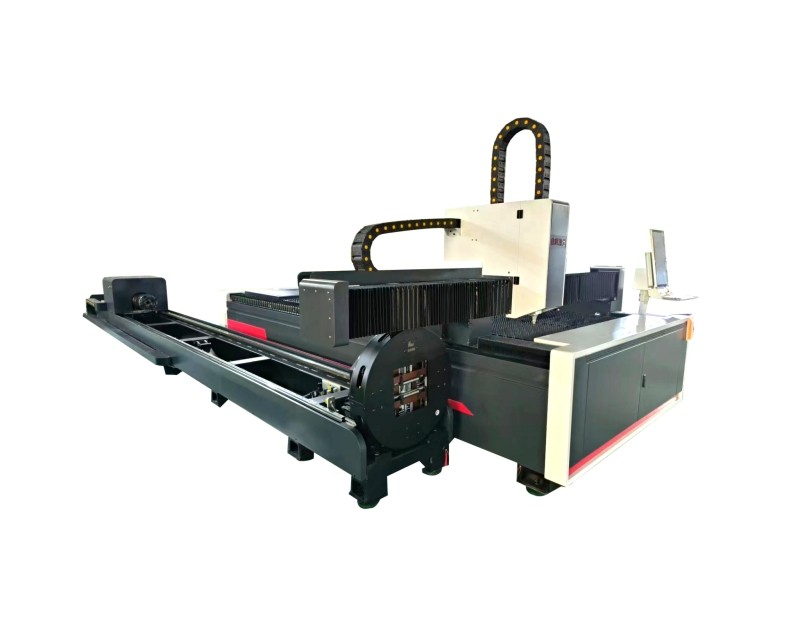

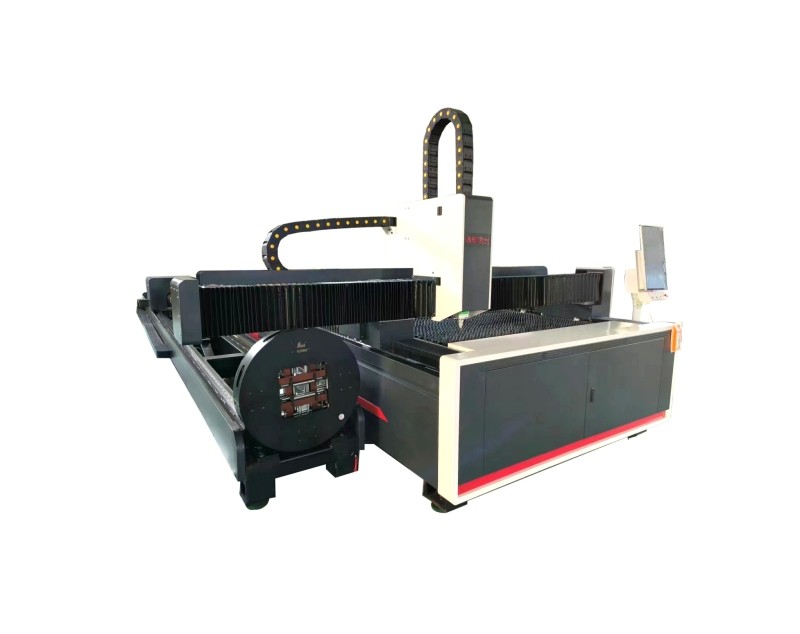

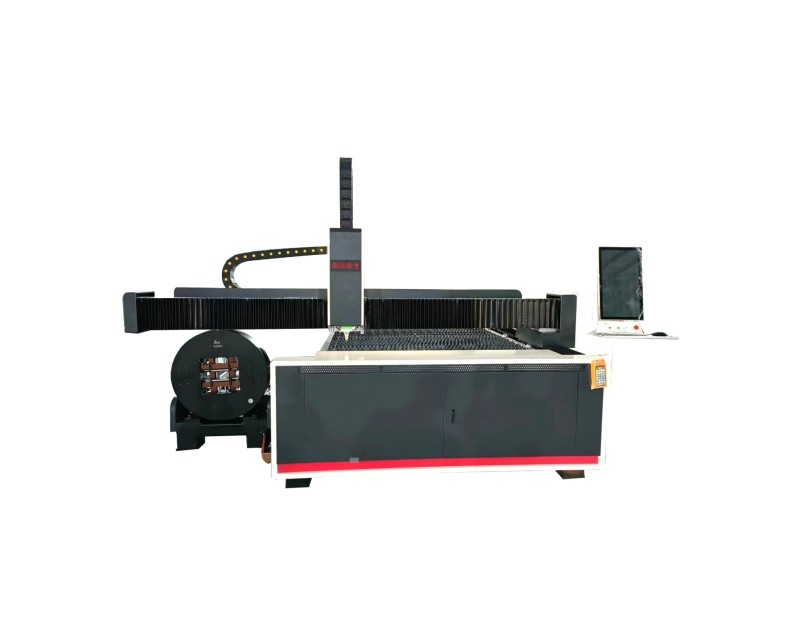

pipe tube and sheet fiber laser cutting machine

Fiber laser cutting machine advantages:
Greater cutting precision and accuracy
Higher quality edges
Narrower knife widths
Smaller HAZ and less material distortion
Less material contamination and waste
Lower maintenance and repair costs
Greater operator safety

Product Description:

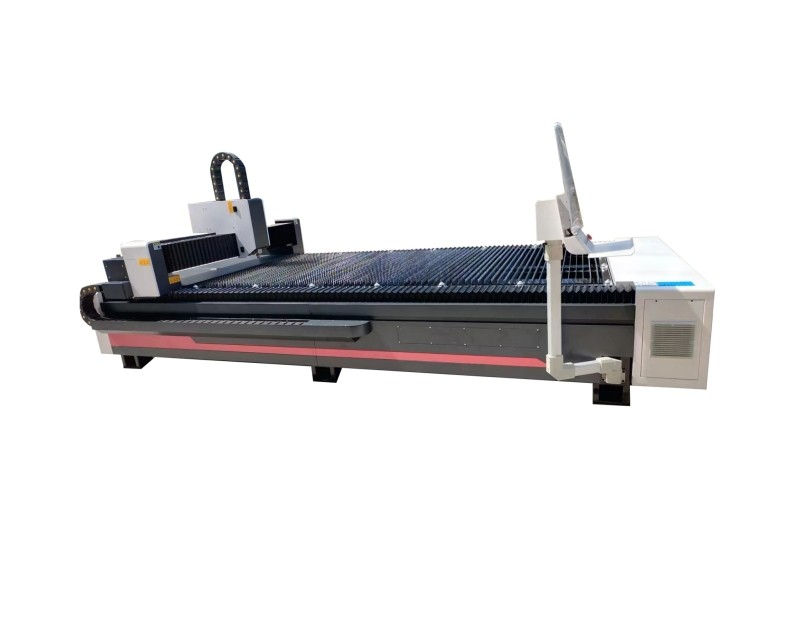

1530 metal fiber laser cutting machine  With its small footprint and low operating costs,

it is the most suitable machine series for businesses with limited budget. less investment,

economic and practical

It has a compact design that can be easily installed on an area of just 15 square meters

1kW, 2kW and 3kW 6KW power options.The usage areas of this machine are mostly for advertisers,

 billboards, electrical cabinet manufacturers, water tank manufacturers, steel door manufacturers,

metal furniture, coffee table and kitchenware production industries.

Detail Tehnical specs as follow

Products Name

Fiber laser cutting machine

Model

BFT-1530

Working area

1500*3000mm (5*10ft)

Laser power

1000w/1500w/2000w/3000w/6000w

Loading capacity

800kgs

Laser Source

Raycus/Max source

Graphic Format

dwg / dxf / stp

Control system

FSCUT(Cypcut)

Laser Head

Raytools

Water Chiller

Wuhan HANLI/S&A

Servo motor

Japan Fuji motor and driver

Precision reducer

shimpo reducer

Gear rack

YYK RACK

Linear Guide

TAIWAN HIWIN LINEAR

Proportional valve

Japan SMC

Machining breadth

1500*3000MM(OPTIONAL CUSTOMIZED SIZE)

X-axis travel

1500MM

Y-axis travel

3000MM

Z-axis travel

150MM (CUSTOMIZED)

Positioning Accuracy of X and Y axis

0.05mm/m (0.002”)

Repeated positioning accuracy of X and Y axis

0.03mm  (0.001”)



Maximum Acceleration of X and Y axis

1.0G

Assist Gasses

Air / Oxygen / Nitrogen

Working voltage

380V

Protection Level of Total Power Supply

IP X 4

Machine total weight

2000kgs

Operating temperature

0-40

Operating humidity

<90%

Gantry

Strengthen Steel

Machine size 9W*L*H)

2240*4600*1800MM


Cutting Thickness

1000 w

2000 w

3000 w

Carbon Steel

10 mm (3/8”)

14 mm (9/16”)

16 mm (5/8”)

Stainless Steel

3 mm (1/8”)

5 mm (3/16”)

6 mm (1/4”)

Aluminium

2 mm (1/16”)

4 mm (1/8”)

5 mm (3/16”)

Brass

2 mm (1/16”)

4 mm (1/8”)

5 mm (3/16”)
