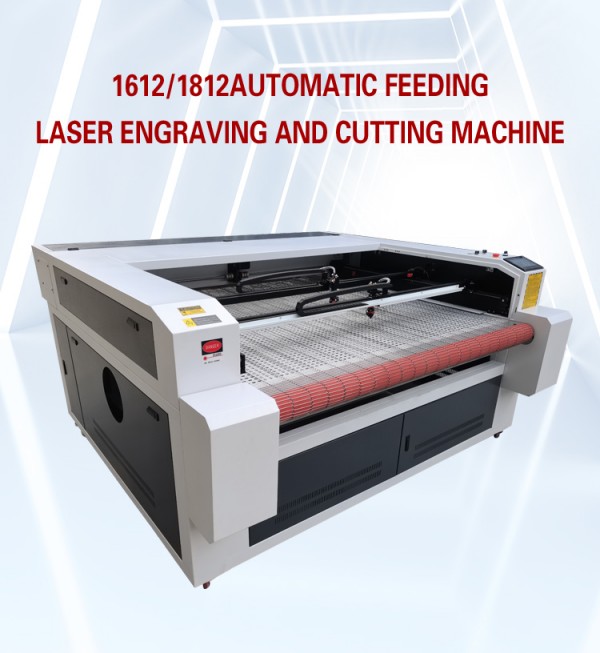

CO2 Laser Cutting Machine With Automatic Feeding Device

co2 Laser engraving and cutting machine,
Laser type :       Co2 glass tube
function:             Engraving and cutting on non metal material
controller card： Ruida

Product Description:

CO2 Laser Cutting Machine With Automatic Feeding Device

The CO2 laser cutting machine with an automatic feeding device is

 a kind of laser cutting machine for cutting different materials.

It is equipped with an automatic feeding device so that the material is automatically

 fed into the machine, and then cut according to the specifications required by the user.

This type of machine is great for cutting complex shapes, as well as cutting large blocks

of material quickly and accurately. The machine is easy to operate and can perform high-quality cutting quickly.

Details techinical specs as follow :

autofeeding co2 laser cutting machine mainly used for fabric ,leather

jeans ect cutting with rolling feeding.


Model

BFT6090S/1390S/1610S/1814S

Processing area

600*900mm /1300mm*900mm/1600*1000mm

/1800*1400mm(customized)

Laser power

80W,100W,130W,150w ect

Laser type:

Co2 Sealed glass laser tube

Resetting positioning accuracy:

±0.01mm

Compatible Software:

Laser cut , CorelDraw, AutoCAD, Photoshop

Whole machine size:

1300mm*1450mm*1150mm

Engraving speed

1-60000mm/min

Cutting speed

1-10000mm/min

Cutting thickness

0-20 mm acrylic (others determined by materials)

Resolution ratio

≤0.0125mm

Position system:

Red dot

Interface:

USB

Minimum shaping character

letter 0.8mm, Chinese 2mm

Support graphic format

DST, PLT, BMP, DXF

Gross power

1000W

Driving mode:

DC0.8A 24V stepper motor

Cooling mode:

Water cooling

Working voltage:

AC 110 - 220V±10%, 50 - 60Hz or depend on customer

Option:

Up and down table, rotary attachment

Packing:

Plywood box

Guarantee time:

1 year, laser tube 10 months

Net weight:

300KGS/450kg/560kg/680kg


RDC6445 Ruida Controller

RDC6445 Ruida controller is a powerful and multifunctional laser engraving and cutting machine controller. It not only supports USB cable computer control but also supports U-disk offline control. It also has good high-voltage resistance and antistatic ability.

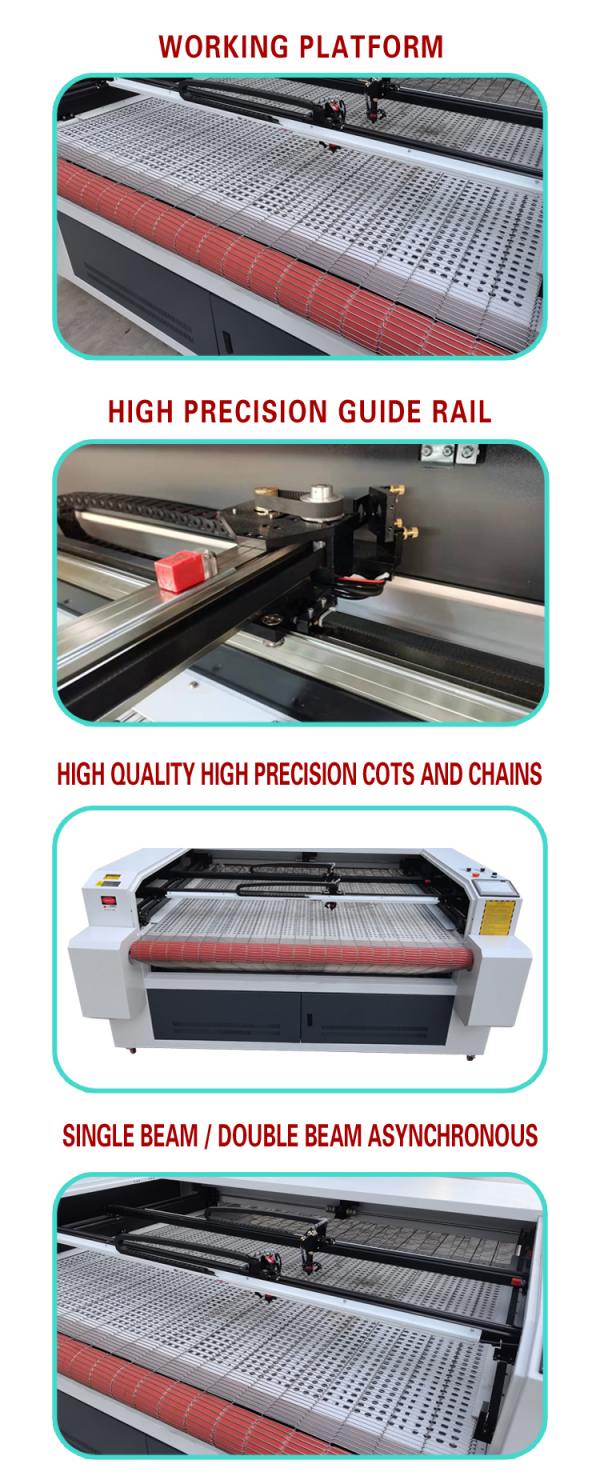

The CO2 laser cutting machine is equipped with an aluminum strip shape worktable,

which can efficiently cut and process a variety of materials, including wood, plastic, fabric, paper, leather,

 and even metal. The worktable is also equipped with safety guards to help protect the user from any potential hazards.


CO2 Laser Head

The high-precision CO2 laser head is selected, and it has a red dot positioning function. The cutting head always follows the material and keeps the position of the cutting point unchanged. An air pipe is also installed on the laser head, and the air blown out will not only blow away the air but also cool the lens and the surface of the object.

Automatic Feeding Device for optiona parts

The automatic feeding device can automatically feed the material into the laser cutting machine, so as to achieve faster, more accurate, and more efficient laser cutting. It also ensures that the material is properly aligned and positioned prior to cutting. The unit is also equipped with safety features to prevent accidents and potential damage.









Product Features

  1. CO2 laser cutting machine can cut and engrave all kinds of non-metal, such as acrylic,

  2. two-color board, marble, wood, plywood, textile, leather, glass, paper, etc.

  3. Widely used in craft gifts, souvenirs, Chinese paper-cut, advertising signs,

  4. clothing, furniture, and many other industries.

  5. The cutting and engraving speed is fast and the precision is high.

  6. The lifting platform, cellular platform, and rotary platform can be configured according to demand.

  7. The working size of the machine can be selected according to the needs.


CO2 laser cutting machine can cut acrylic, wood board, two-color board, plastic board, leather, rubber,

and other non-metallic materials. It is widely used in advertising, decoration, handicrafts, toys, clothing, models, and other industries.
