3000w metal tube and sheet fiber laser cutting machine

3000w metal tube and sheet fiber laser cutting machine

Fiber laser cutting machine advantages:
Greater cutting precision and accuracy
Higher quality edges
Narrower knife widths
Smaller HAZ and less material distortion
Less material contamination and waste
Lower maintenance and repair costs
Greater operator safety

Product Description:

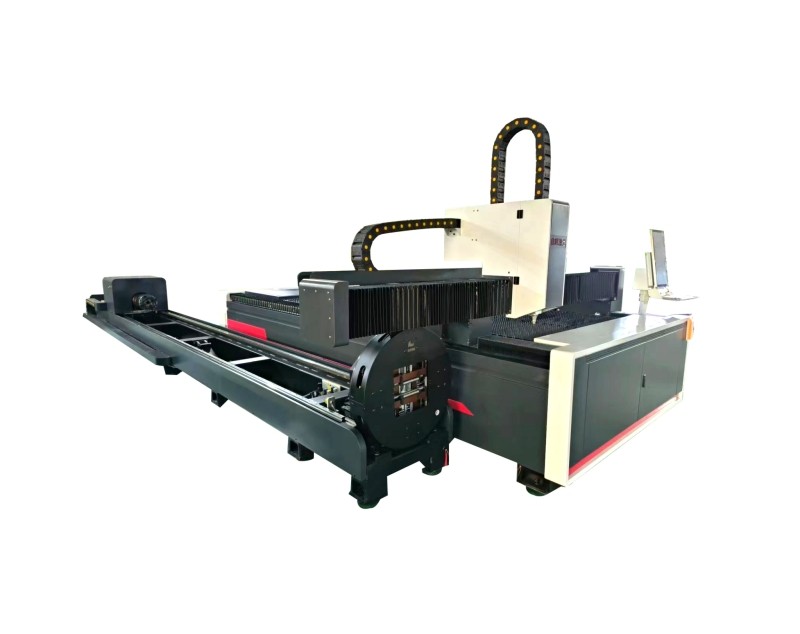

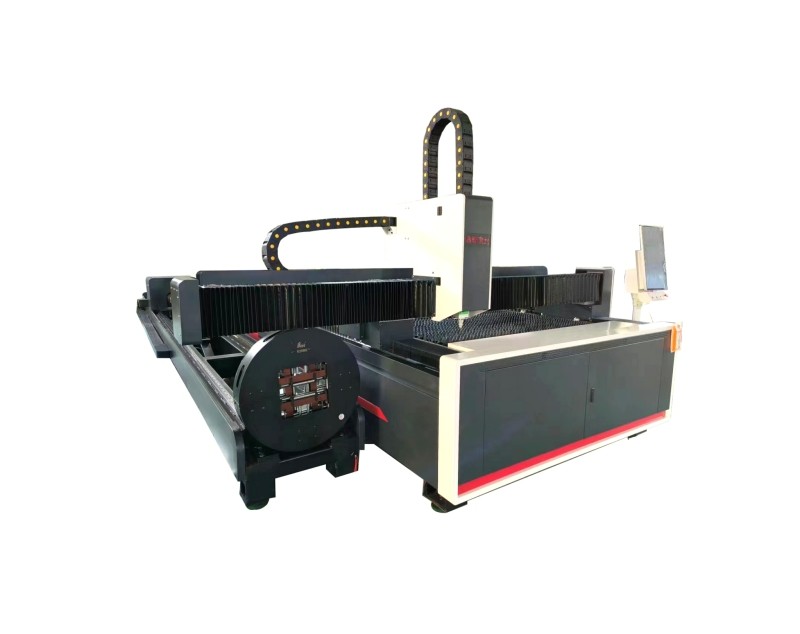

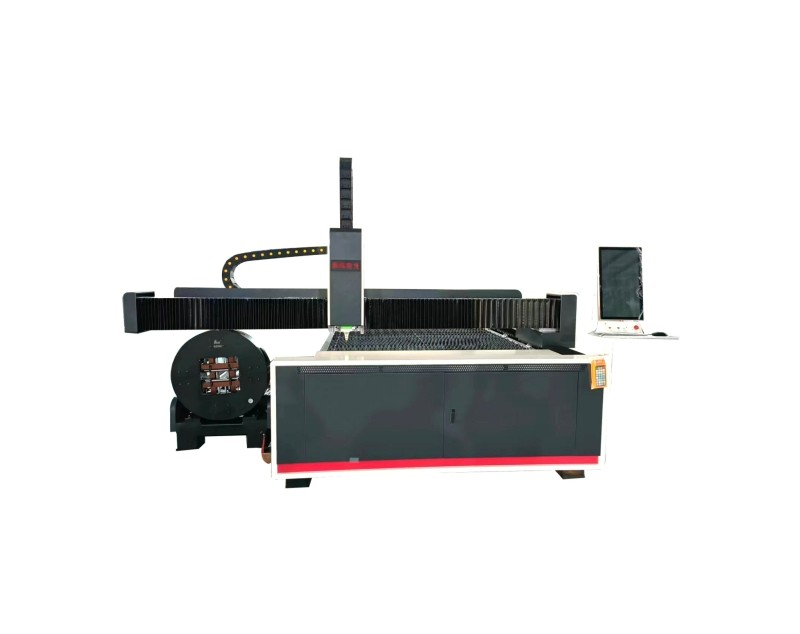

Metal tube laser cutting machine Introduction :

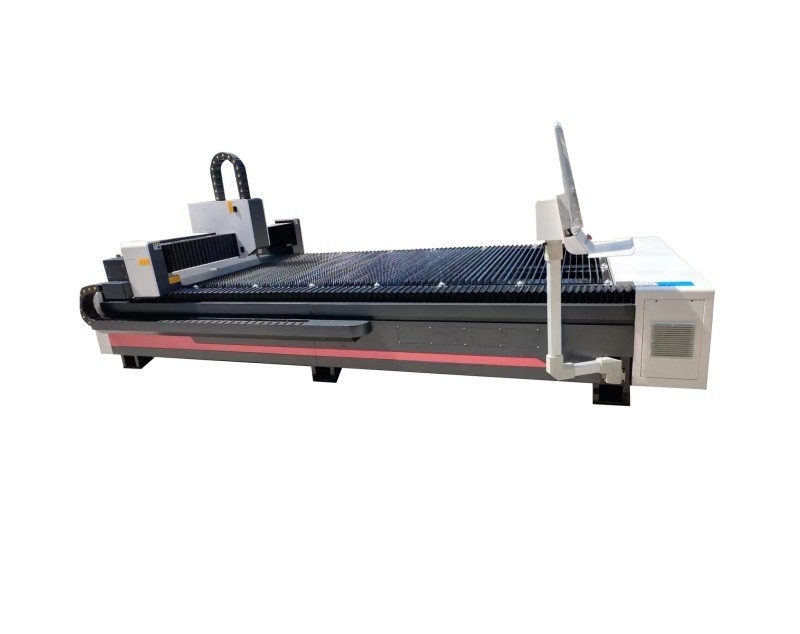

1530 metal fiber laser cutting machine With its small footprint and low operating costs,

it is the most suitable machine series for businesses with limited budget. less investment,

economic and practical

It has a compact design that can be easily installed on an area of just 15 square meters

1kW, 2kW and 3kW 6KW power options.The usage areas of this machine are mostly for advertisers,

billboards, electrical cabinet manufacturers, water tank manufacturers, steel door manufacturers,

metal furniture, coffee table and kitchenware production industries.

Detail Tehnical specs as follow

Products Name	Fiber laser cutting machine
Model	BFT-1530
Working area	15003000mm (510ft)
Laser power	1000w/1500w/2000w/3000w/6000w
Loading capacity	800kgs

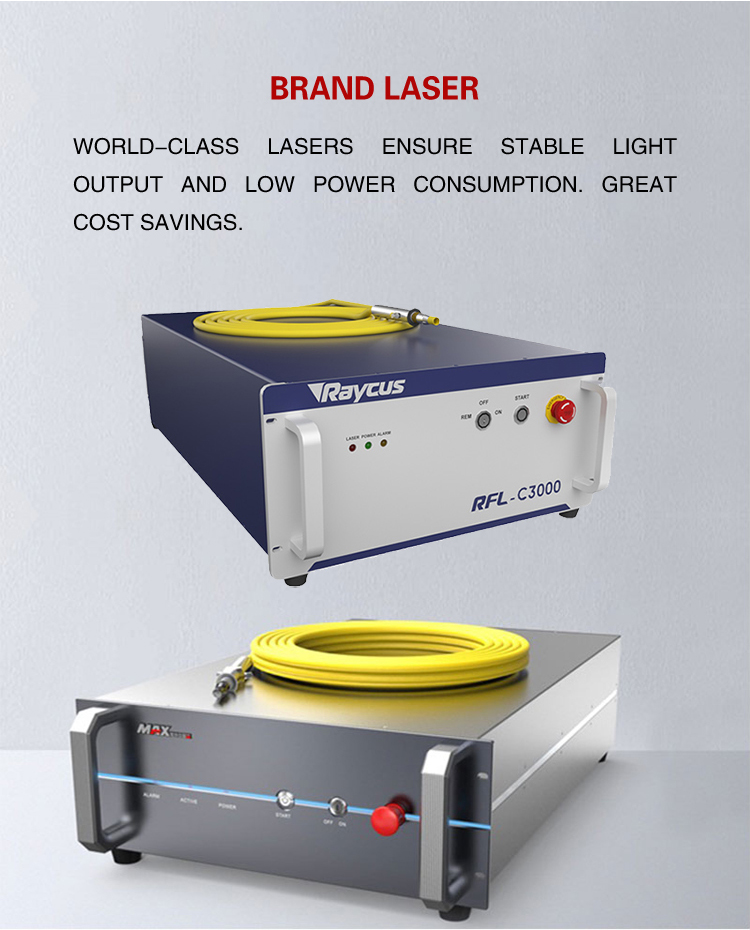

Laser Source	Raycus/Max source
Graphic Format	dwg / dxf / stp
Control system	FSCUT(Cypcut)

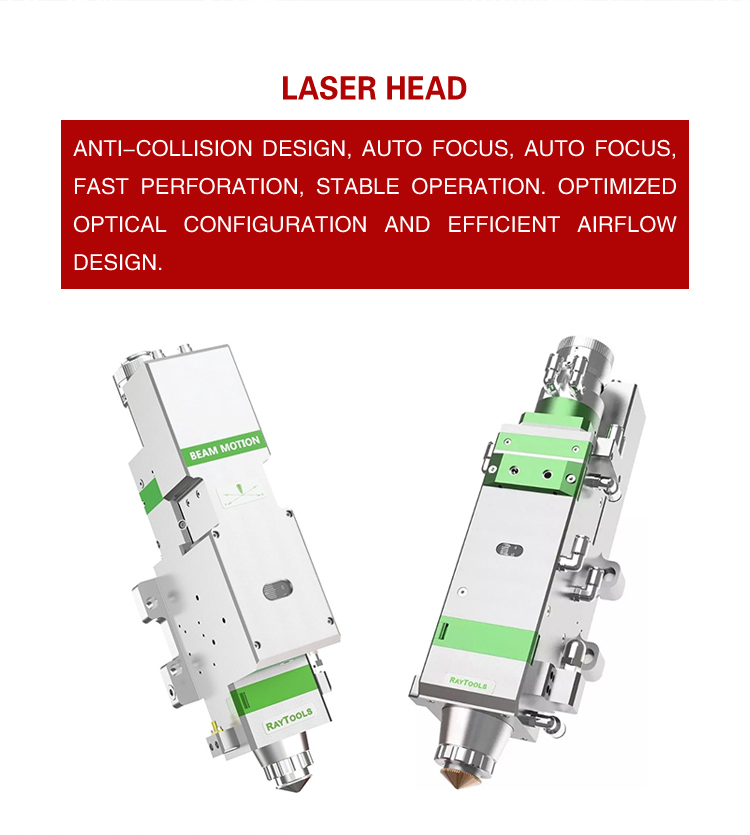

Laser Head	Raytools

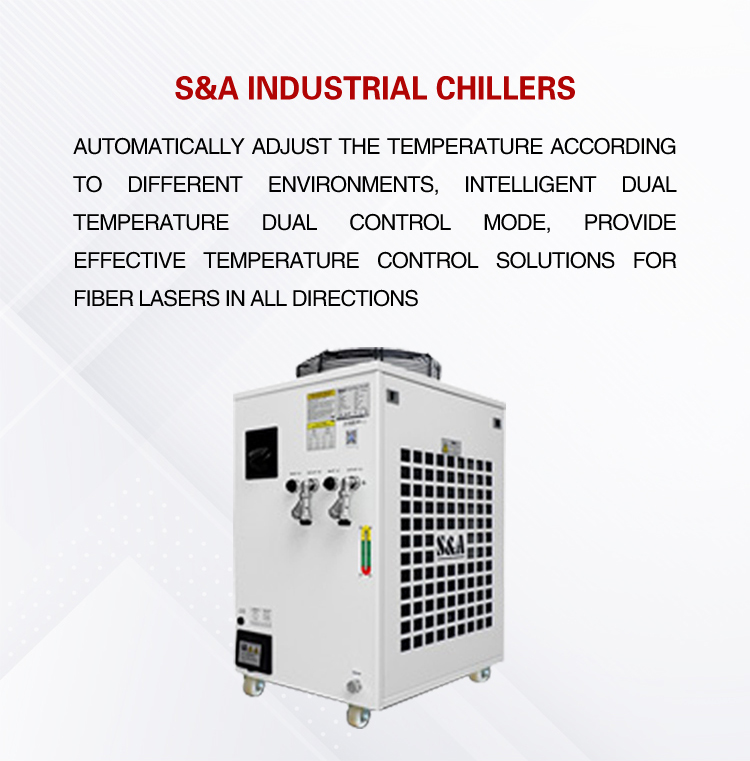

Water Chiller	Wuhan HANLI/S&A

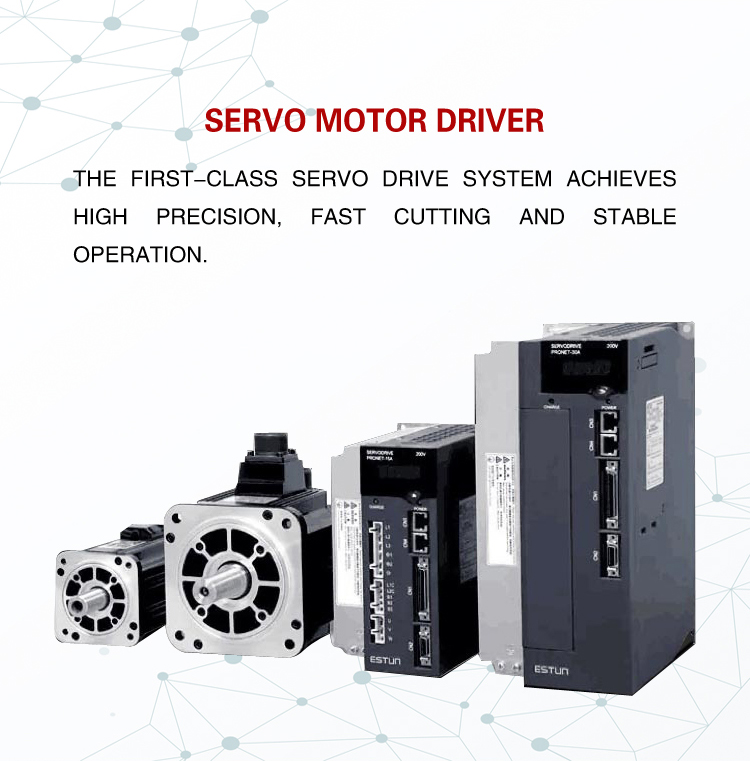

Servo motor	Japan Fuji motor and driver
Precision reducer	shimpo reducer
Gear rack	YYK RACK
Linear Guide	TAIWAN HIWIN LINEAR
Proportional valve	Japan SMC
Machining breadth	1500*3000MM(OPTIONAL CUSTOMIZED SIZE)
X-axis travel	1500MM
Y-axis travel	3000MM
Z-axis travel	150MM (CUSTOMIZED)
Positioning Accuracy of X and Y axis	0.05mm/m (0.002”)
Repeated positioning accuracy of X and Y axis	0.03mm (0.001”)
Maximum Acceleration of X and Y axis	1.0G
Assist Gasses	Air / Oxygen / Nitrogen
Working voltage	380V
Protection Level of Total Power Supply	IP X 4
Machine total weight	2000kgs
Operating temperature	0℃-40℃
Operating humidity	<90%
Gantry	Strengthen Steel
Machine size 9WLH)	224046001800MM

Cutting Thickness	1000 w	2000 w	3000 w
Carbon Steel	10 mm (3/8”)	14 mm (9/16”)	16 mm (5/8”)
Stainless Steel	3 mm (1/8”)	5 mm (3/16”)	6 mm (1/4”)
Aluminium	2 mm (1/16”)	4 mm (1/8”)	5 mm (3/16”)
Brass	2 mm (1/16”)	4 mm (1/8”)	5 mm (3/16”)
