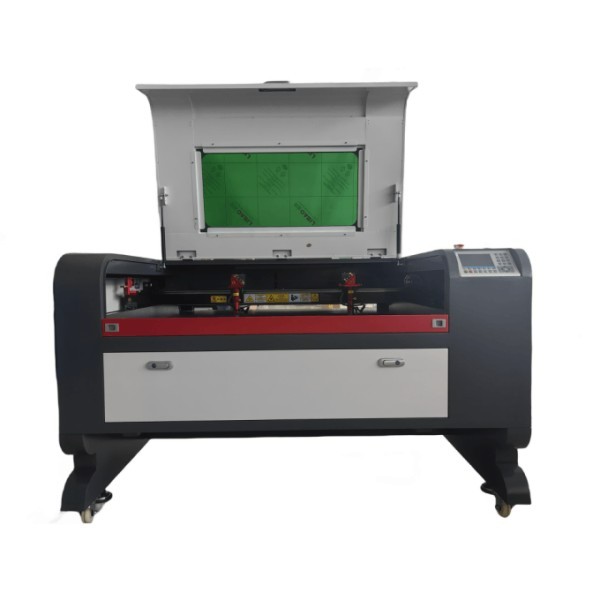

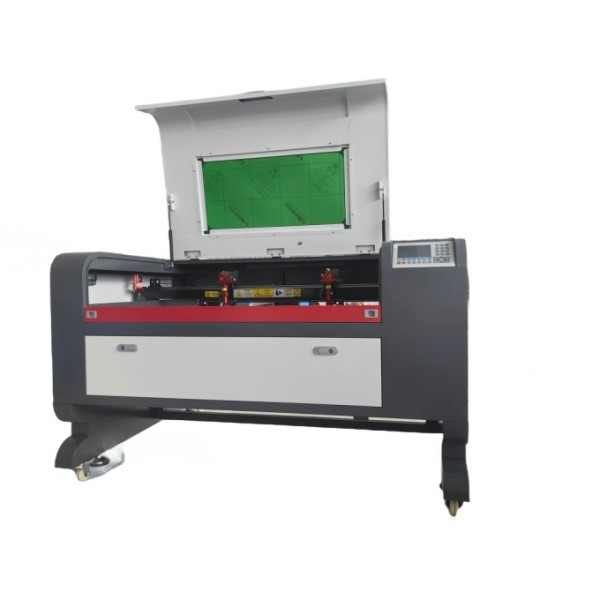

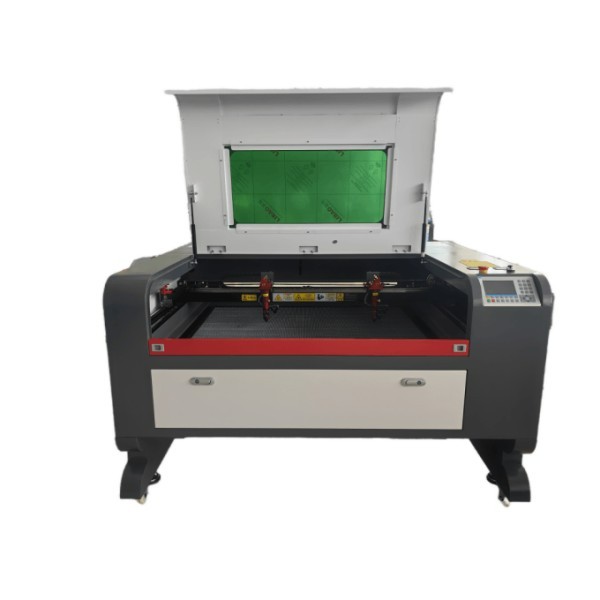

1060/6040/ Co2 laser cutting machine

co2 laser cutting machine feature:
laser type:      co2 glass tube
cutting speed: 0-60000mm/min
cutting area:    1000*800mm
controller:         Ruida

Product Description:

CO2 LASER CUTTING MACHINE A SERIES TYPE

CO2 Laser cutting machine with various working size optional

700*500mm , 900*600mm .1300*900mm ,1600*1000mm or customized

Ⅲsuitable materials for cutting & engraving

The laser systems offered here are very well suited for Engraving

and cutting materials such as the following:

Natural materials:Rock, brick, stone, marble, granite, glass,

Organic Materials:Wood, Leather, Plants, Fruit, Vegetables, Sea shells ...etc.

(be carefull not to burn your skin or eyes)

Man Made Polymers:Acrylic, plexiglass, vinyl, styrofoam, styrene, ..etc.

Cloths:Jeans, cotton, silk, nylon, Dacron, ..etc

Model	BFT1080
Processing area	1000*800mm
Laser power	60W(Option:80W,100W,130W)
Laser type:	Co2 Sealed glass laser tube
Resetting positioning accuracy:	±0.01mm
Compatible Software:	Laser cut , CorelDraw, AutoCAD, Photoshop
Whole machine size:	1300mm1450mm1150mm
Engraving speed	1-60000mm/min
Cutting speed	1-20000mm/min
Cutting thickness	0-20 mm acrylic (others determined by materials)
Resolution ratio	≤0.0125mm
Position system:	Red dot
Interface:	USB
Minimum shaping character	letter 0.8mm, Chinese 2mm
Support graphic format	DST, PLT, BMP, DXF
Gross power	1000W
Driving mode:	DC0.8A 24V stepper motor
Cooling mode:	Water cooling
Working voltage:	AC 110 - 220V±10%, 50 - 60Hz or depend on customer
Option:	Up and down table, rotary attachment
Packing:	Plywood box
Guarantee time:	1 year, laser tube 10 months
Net weight:	300KGS
